Question: Discrete Math Question. Thank You Number 9 only please. Construct an equivalent state diagram for the finite state (Mealy) machine described in the table. Determine

Discrete Math Question. Thank You Number 9 only please.

Discrete Math Question. Thank You Number 9 only please. Construct an equivalent

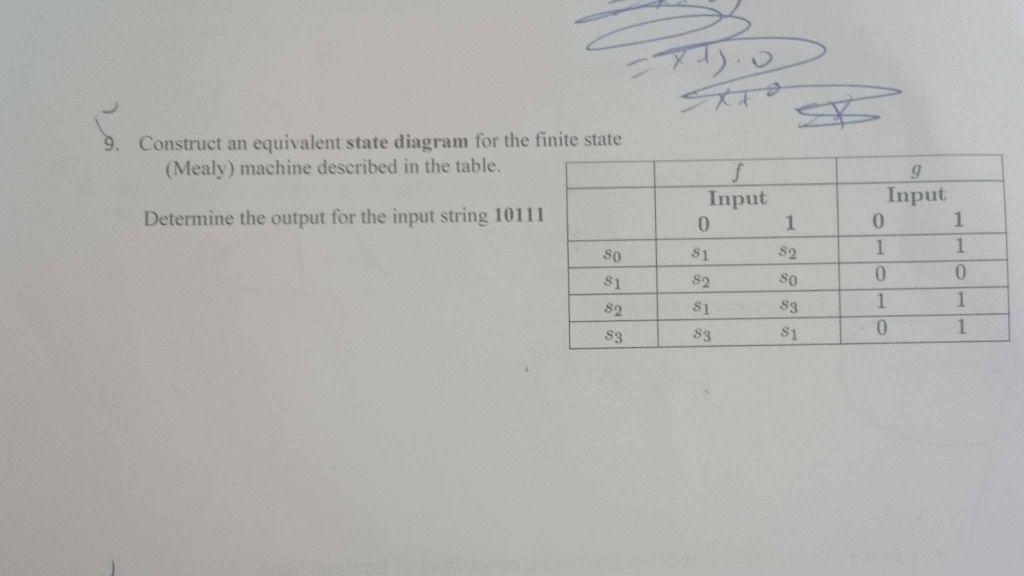

Construct an equivalent state diagram for the finite state (Mealy) machine described in the table. Determine the output for the input string 10111

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

Discrete math QUESTION 6 15 MARKS a) Let h = {S, I, 0,9., fs, fo} be the finite state machine (FSM) of equipment Y. Figure 5 shows the transition diagram for the machine. 1/0 1/1 O 0/0 1/02 0/0 1/0 S...
