Question: do forward pass, backwards pass, and critical path please Colores Legend ES EF Activity ID Duration IS LF 1 6 E K N 6 12

do forward pass, backwards pass, and critical

do forward pass, backwards pass, and critical path please

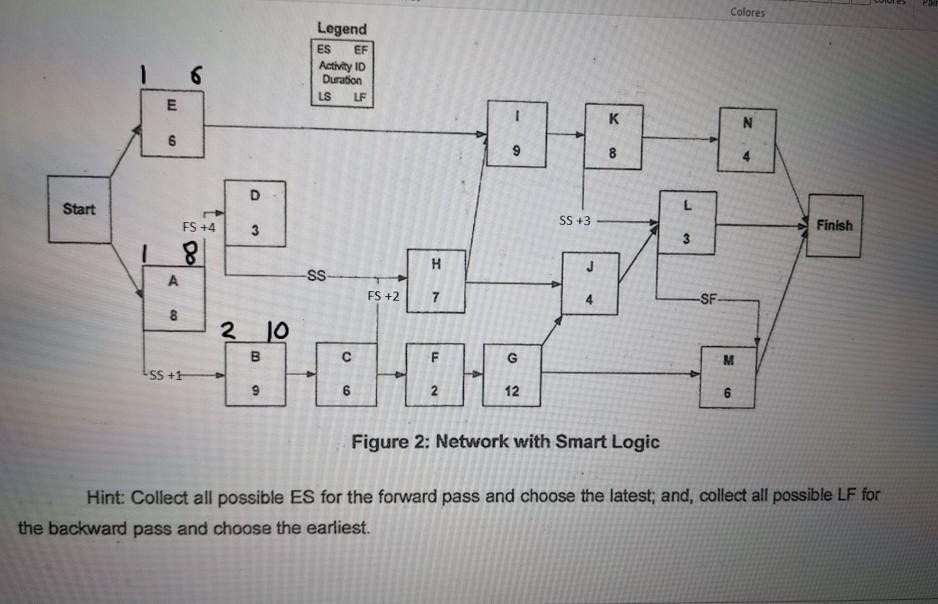

Colores Legend ES EF Activity ID Duration IS LF 1 6 E K N 6 12 9 8 D Start L FS +4 SS +3 Finish H -SS- FS +2 7 -SF CO 2 jo B F G M LSS +1 9 6 2 12 6 Figure 2: Network with Smart Logic Hint: Collect all possible ES for the forward pass and choose the latest; and, collect all possible LF for the backward pass and choose the earliest

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
