Question: Do the Following Problems The basic meter, as shown in the figure below, is designed so that: B = 1 W b m 2 ,

Do the Following Problems

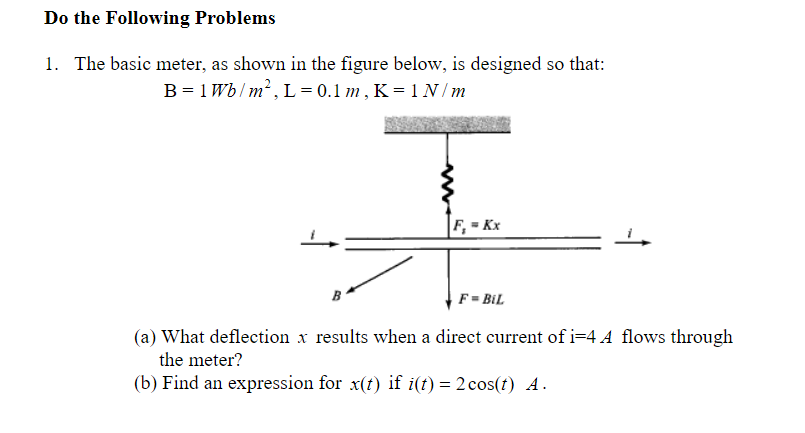

The basic meter, as shown in the figure below, is designed so that:
B=1Wbm2,L=0.1m,K=1Nm
(a) What deflection x results when a direct current of i=4A flows through
the meter?
(b) Find an expression for x(t) if i(t)=2cos(t)A.
Do the Following Problems The basic meter, as

Step by Step Solution

There are 3 Steps involved in it
