Draw an initial sketch for a $($TYPICAL UPPER HOTEL FLOOR$)$ to include location and arrangement of lift and stair core$($s$),$ corridors and hotel rooms, column position, structural grids and dimensions and total number of hotel rooms achieved. PLEASE DRAW IT ON PAPER OR NICELY THAT ITS EASY TO READ.

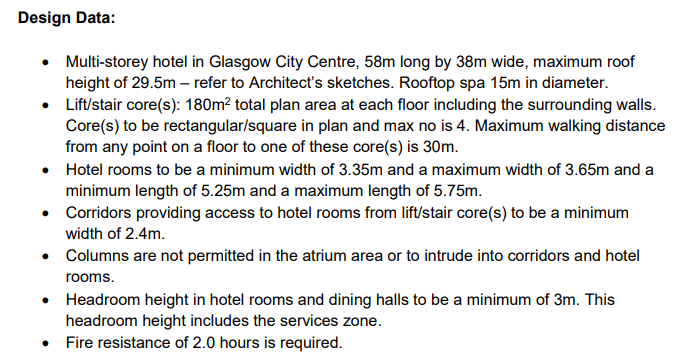

Design Data:

Multi$-$storey hotel in Glasgow City Centre, $58$ m long by $38$ m wide, maximum roof

height of $29\mathrm{.}5$ m $-$ refer to Architect's sketches. Rooftop spa $15$ m in diameter.

Lift$/$stair core$($s$)$: $180m^2$ total plan area at each floor including the surrounding walls.

Core$($s$)$ to be rectangular$/$square in plan and max no is $4.$ Maximum walking distance

from any point on a floor to one of these core$($s$)$ is $30$ m $.$

Hotel rooms to be a minimum width of $3\mathrm{.}35$ m and a maximum width of $3\mathrm{.}65$ m and a

minimum length of $5\mathrm{.}25$ m and a maximum length of $5\mathrm{.}75$ m $.$

Corridors providing access to hotel rooms from lift$/$stair core$($s$)$ to be a minimum

width of $2\mathrm{.}4$ m $.$

Columns are not permitted in the atrium area or to intrude into corridors and hotel

rooms.

Headroom height in hotel rooms and dining halls to be a minimum of $3$ m $.$ This

headroom height includes the services zone.

Fire resistance of $2\mathrm{.}0$ hours is required.
