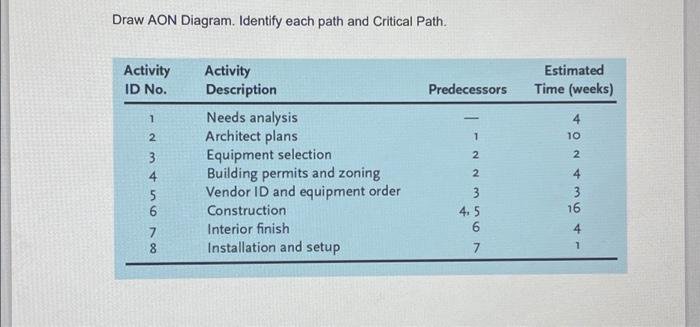

Question: Draw AON Diagram. Identify each path and Critical Path. Activity ID No. 1 234 4 56 6 78 Activity Description Needs analysis Architect plans Equipment

Draw AON Diagram. Identify each path and Critical Path. Activity ID No. 1 234 4 56 6 78 Activity Description Needs analysis Architect plans Equipment selection Building permits and zoning Vendor ID and equipment order Construction Interior finish Installation and setup Predecessors 1 3567NN - 2 4,5 Estimated Time (weeks) 4 -A WANO 10 4 3 16 4

Draw AON Diagram. Identify each path and Critical Path

Step by Step Solution

There are 3 Steps involved in it
