Question: Draw the HGL for the system shown below. The pump flow at A is 1 0 0 L s with a 5 5 0 kPa

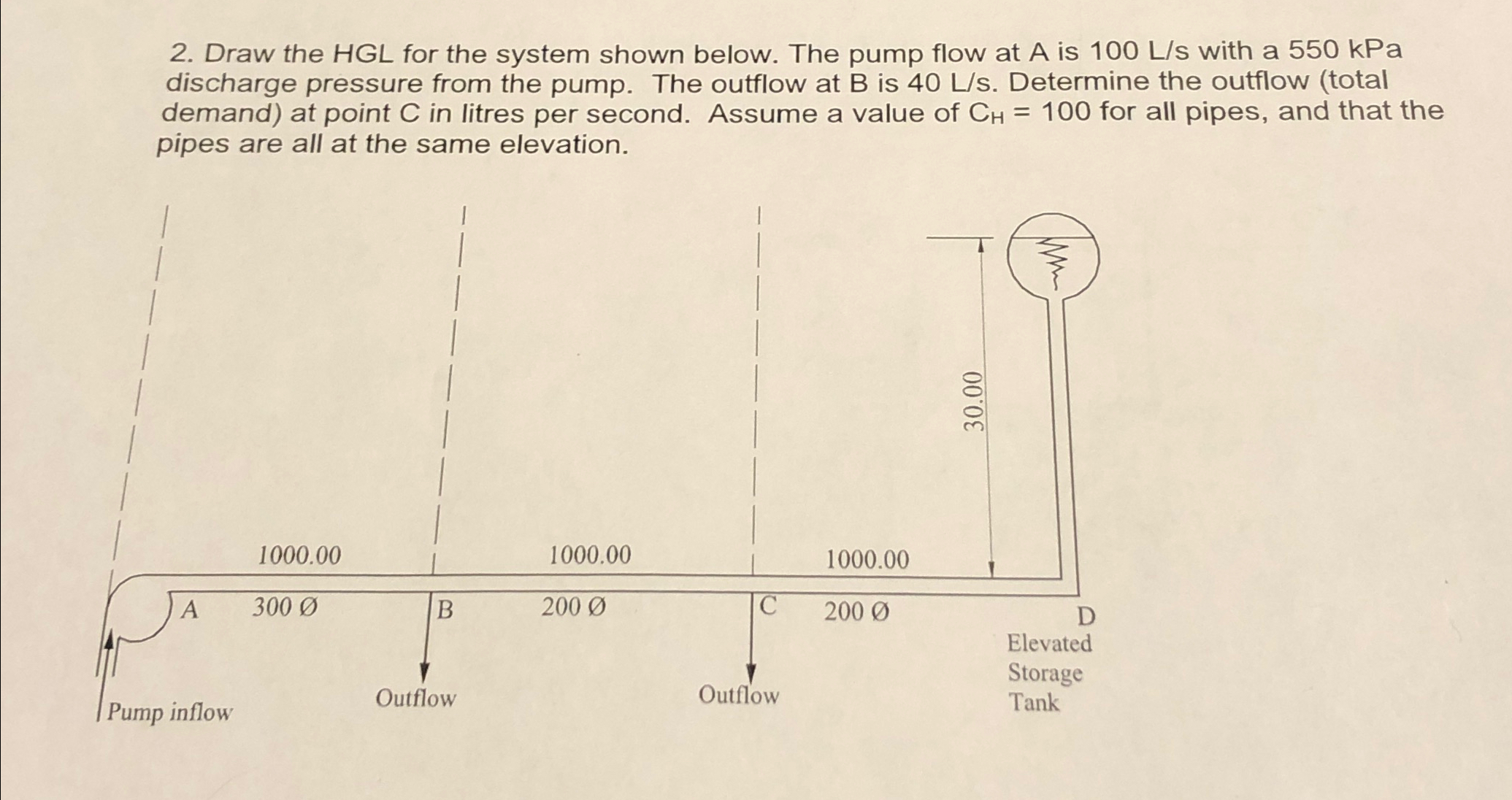

Draw the HGL for the system shown below. The pump flow at A is 100Ls with a 550kPa discharge pressure from the pump. The outflow at B is 40Ls. Determine the outflow (total demand) at point C in litres per second. Assume a value of CH=100 for all pipes, and that the pipes are all at the same elevation.
Draw the HGL for the system shown below. The pump

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
