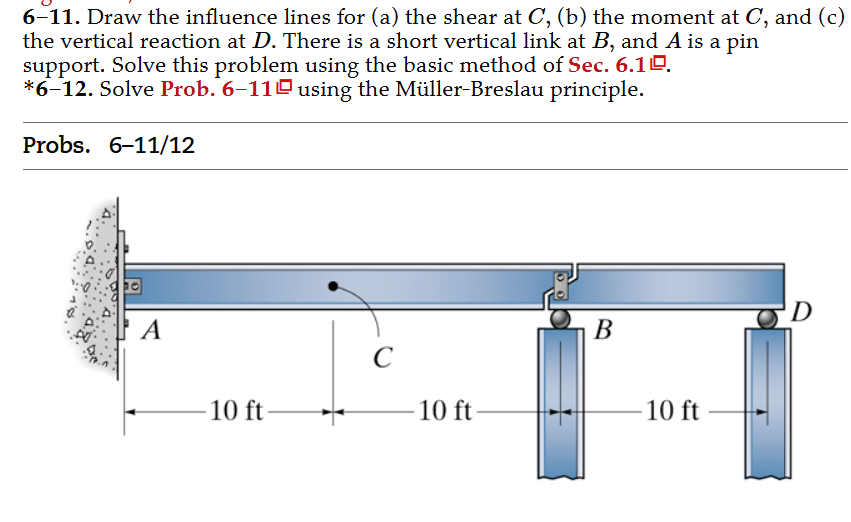

Question: Draw the influence lines for ( a ) the shear at C , ( b ) the moment at C , and ( c )

Draw the influence lines for (a) the shear at C,(b) the moment at C, and (c)
the vertical reaction at D. There is a short vertical link at B, and A is a pin
support. Solve using the Mller-Breslau principle.
Draw the influence lines for ( a ) the shear at C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
