Question: Draw the node network, perform the CPM calculations, mark the critical path, and complete the table below: Activity Duration IPA ES EF LS LF TF

Draw the node network, perform the CPM calculations, mark the critical path, and complete the table below:
Activity Duration IPA ES EF LS LF TF
A 2
B4A
C,6,A
D9A
E5,B
F,7,B,C
G ,3,D,

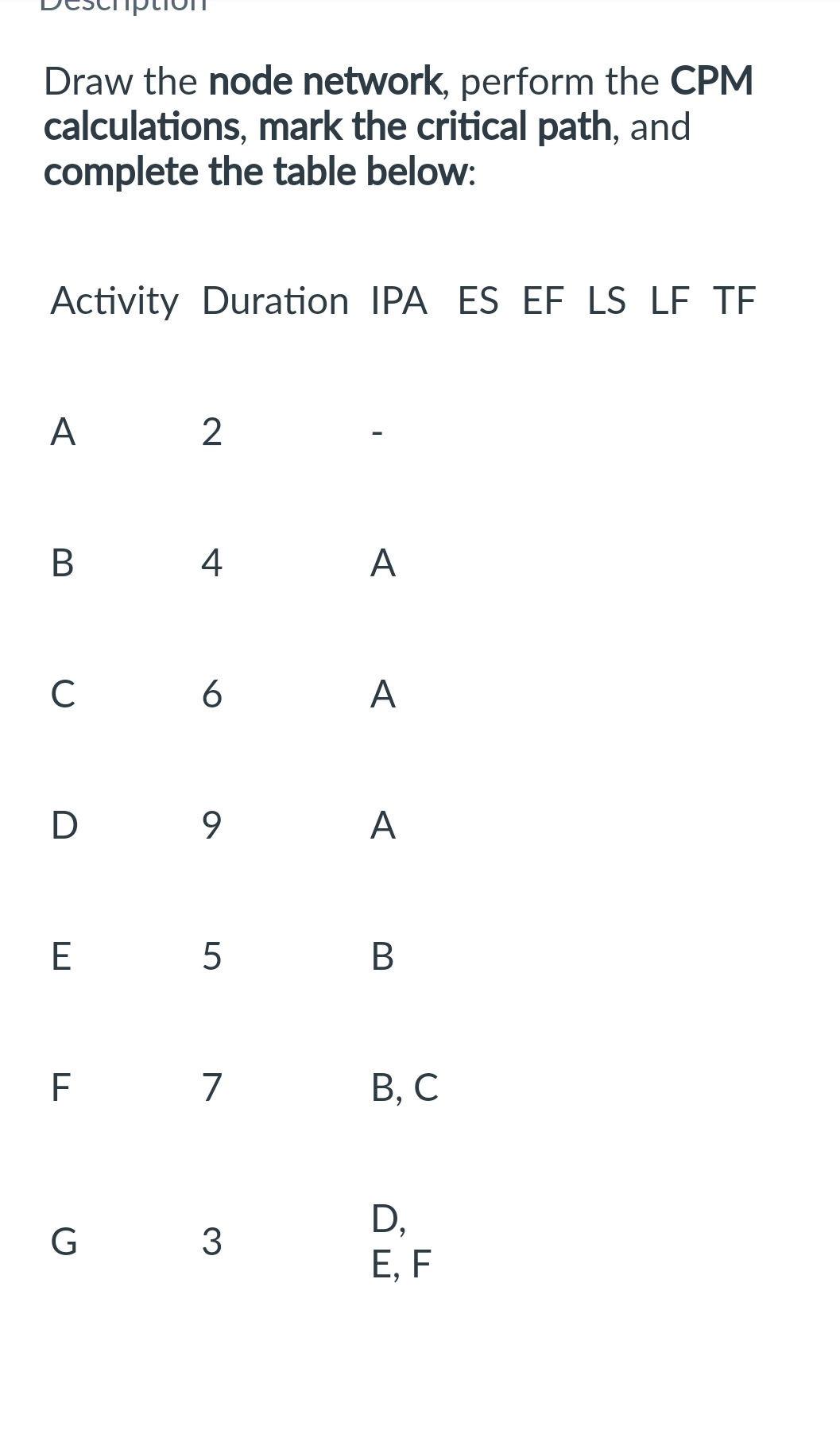

Draw the node network, perform the CPM

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
