Question: draw this using https://app.plcsimulator.online thank uu PLC Programming NETWORK 1 START PB CYCLE ON STOP PB HE HH HF CYCLE ON -(LATCH) NETWORK 2 TANK

draw this using https://app.plcsimulator.online thank uu

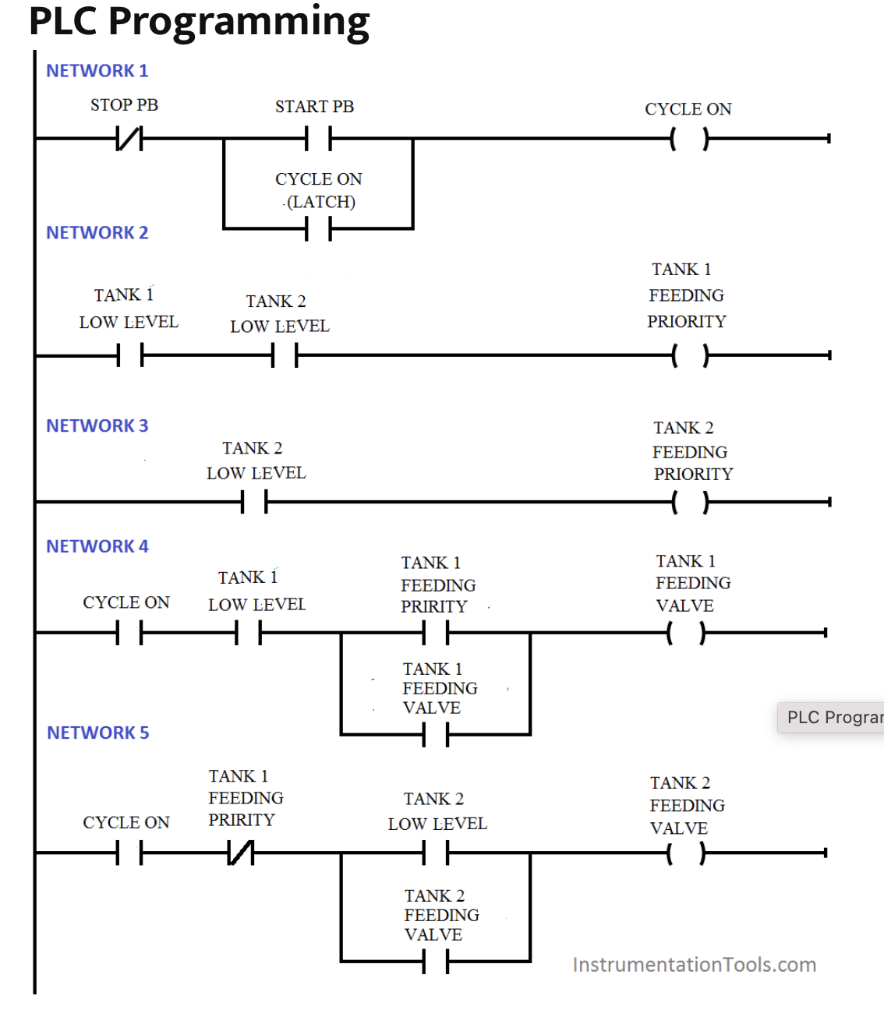

PLC Programming NETWORK 1 START PB CYCLE ON STOP PB HE HH HF CYCLE ON -(LATCH) NETWORK 2 TANK 1 LOW LEVEL TANK 2 LOW LEVEL TANK 1 FEEDING PRIORITY HH NETWORK 3 TANK 2 LOW LEVEL TANK 2 FEEDING PRIORITY HH NETWORK 4 TANK 1 FEEDING PRIRITY TANK 1 LOW LEVEL HH TANK 1 FEEDING VALVE CYCLE ON HH HH TANK 1 FEEDING VALVE PLC Prograr NETWORK 5 TANK 1 FEEDING PRIRITY TANK 2 LOW LEVEL TANK 2 FEEDING VALVE CYCLE ON HH HE HH TANK 2 FEEDING VALVE Instrumentation Tools.com

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
