Question: e following circuit represents: Select one: a . Four - bit adder - subtractor without overfiow detection b . Four - bit adder - subtractor

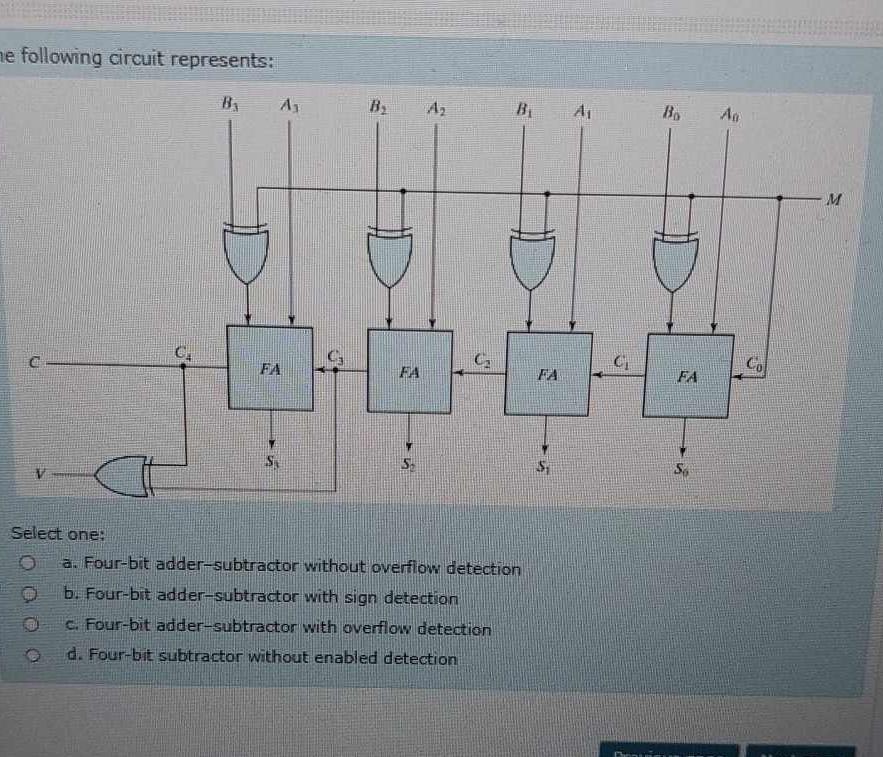

e following circuit represents:
Select one:
a. Four-bit adder-subtractor without overfiow detection
b. Four-bit adder-subtractor with sign detection
c. Four-bit adder-subtractor with overflow detection
d. Four-bit subtractor without enabled detection
e following circuit represents: Select one: a. Four-bit adder-subtractor without overfiow

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
