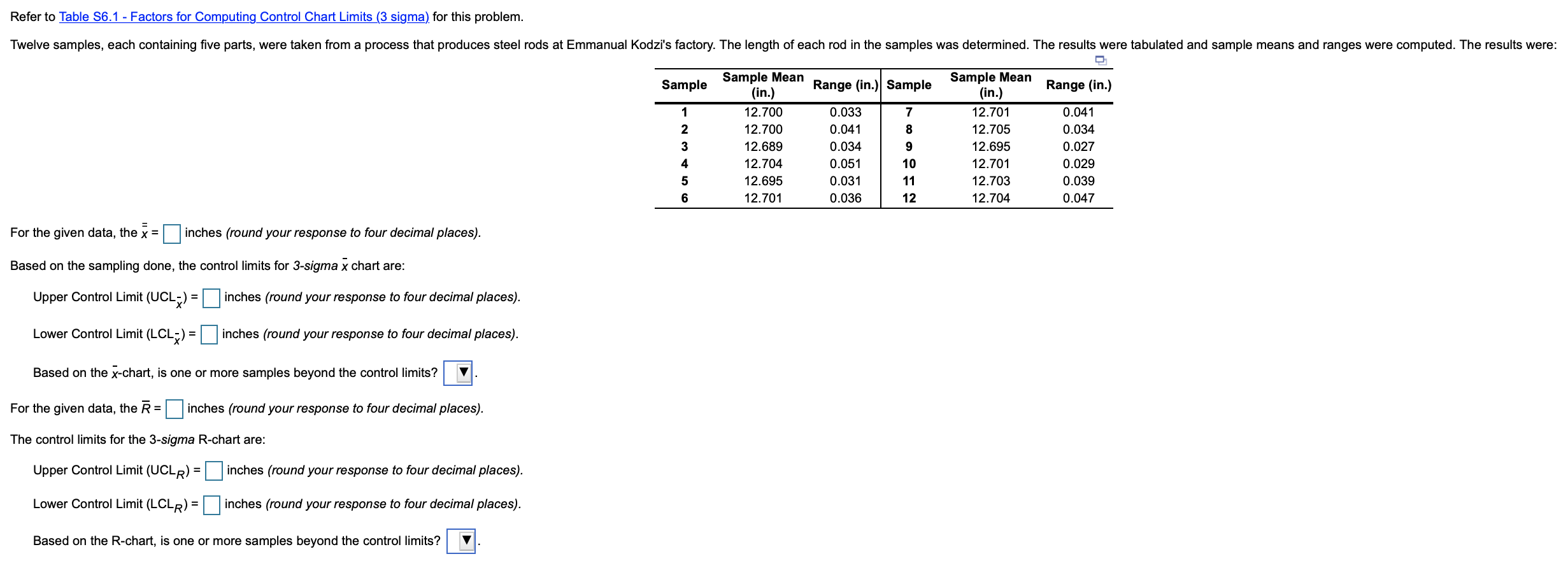

efer to Table S6.1 - Factors for Computing Control Chart Limits (3 sigma) LOADING... for this problem. Twelve samples, each containing five parts, were taken from a process that produces steel rods at Emmanual Kodzi's factory. The length of each rod in the samples was determined. The results were tabulated and sample means and ranges were computed. The results were: Sample Sample Mean (in.) Range (in.) Sample Sample Mean (in.) Range (in.) 1 12.700 0.033 7 12.701 0.041 2 12.700 0.041 8 12.705 0.034 3 12.689 0.034 9 12.695 0.027 4 12.704 0.051 10 12.701 0.029 5 12.695 0.031 11 12.703 0.039 6 12.701 0.036 12 12.704 0.047 For the given data, the x = nothing inches (round your response to four decimal places). Based on the sampling done, the control limits for 3-sigma x chart are: Upper Control Limit (UCLx) = nothing inches (round your response to four decimal places). Lower Control Limit (LCLx) = nothing inches (round your response to four decimal places). Based on the x-chart, is one or more samples beyond the control limits? Yes No . For the given data, the R = nothing inches (round your response to four decimal places). The control limits for the 3-sigma R-chart are: Upper Control Limit (UCLR) = nothing inches (round your response to four decimal places). Lower Control Limit (LCLR) = nothing inches (round your response to four decimal places). Based on the R-chart, is one or more samples beyond the control limits? No Yes .

Refer to Table 56.1 - Factors for Computing Control Chart Limits (3 sigma) for this problem. Twelve samples, each containing five parts, were taken from a process that produces steel rods at Emmanual Kodzi's factory. The length of each rod in the samples was determined. The results were tabulated and sample means and ranges were computed. The results were: Sample Range (in.) Sample Range (in.) 1 7 2 8 Sample Mean (in.) 12.700 12.700 12.689 12.704 12.695 12.701 Sample Mean (in.) 12.701 12.705 12.695 12.701 12.703 12.704 0.033 0.041 0.034 0.051 0.031 0.036 3 0.041 0.034 0.027 0.029 0.039 0.047 9 10 11 12 4 5 6 For the given data, the x = inches (round your response to four decimal places). Based on the sampling done, the control limits for 3-sigma x chart are: Upper Control Limit (UCL;) = inches (round your response to four decimal places). Lower Control Limit (LCL2) = inches (round your response to four decimal places). Based on the x-chart, is one or more samples beyond the control limits? For the given data, the R = inches (round your response to four decimal places). The control limits for the 3-sigma R-chart are: Upper Control Limit (UCLR) = inches (round your response to four decimal places). Lower Control Limit (LCLR) - inches (round your response to four decimal places). Based on the R-chart, is one or more samples beyond the control limits
