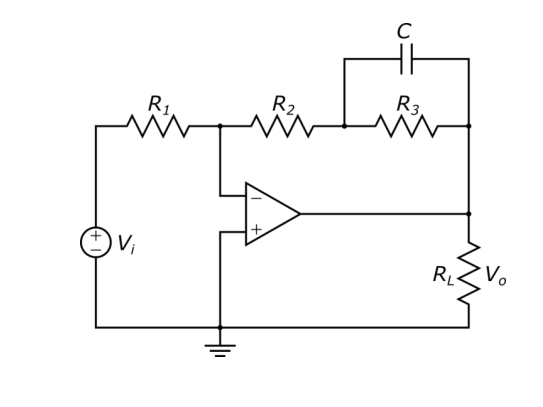

Question: EN: The input to the circuit below is the source voltage, VL-(t), and the response is the voltage across RL, DEG). The resistance is R1

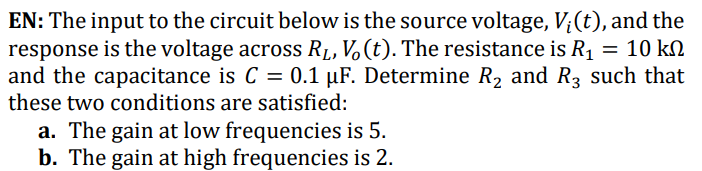

EN: The input to the circuit below is the source voltage, VL-(t), and the response is the voltage across RL, DEG). The resistance is R1 = 10 k and the capacitance is C = 0.1 uF. Determine R2 and R3 such that these two conditions are satisfied: a. The gain at low frequencies is 5. h. The gain at high frequencies is 2.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
