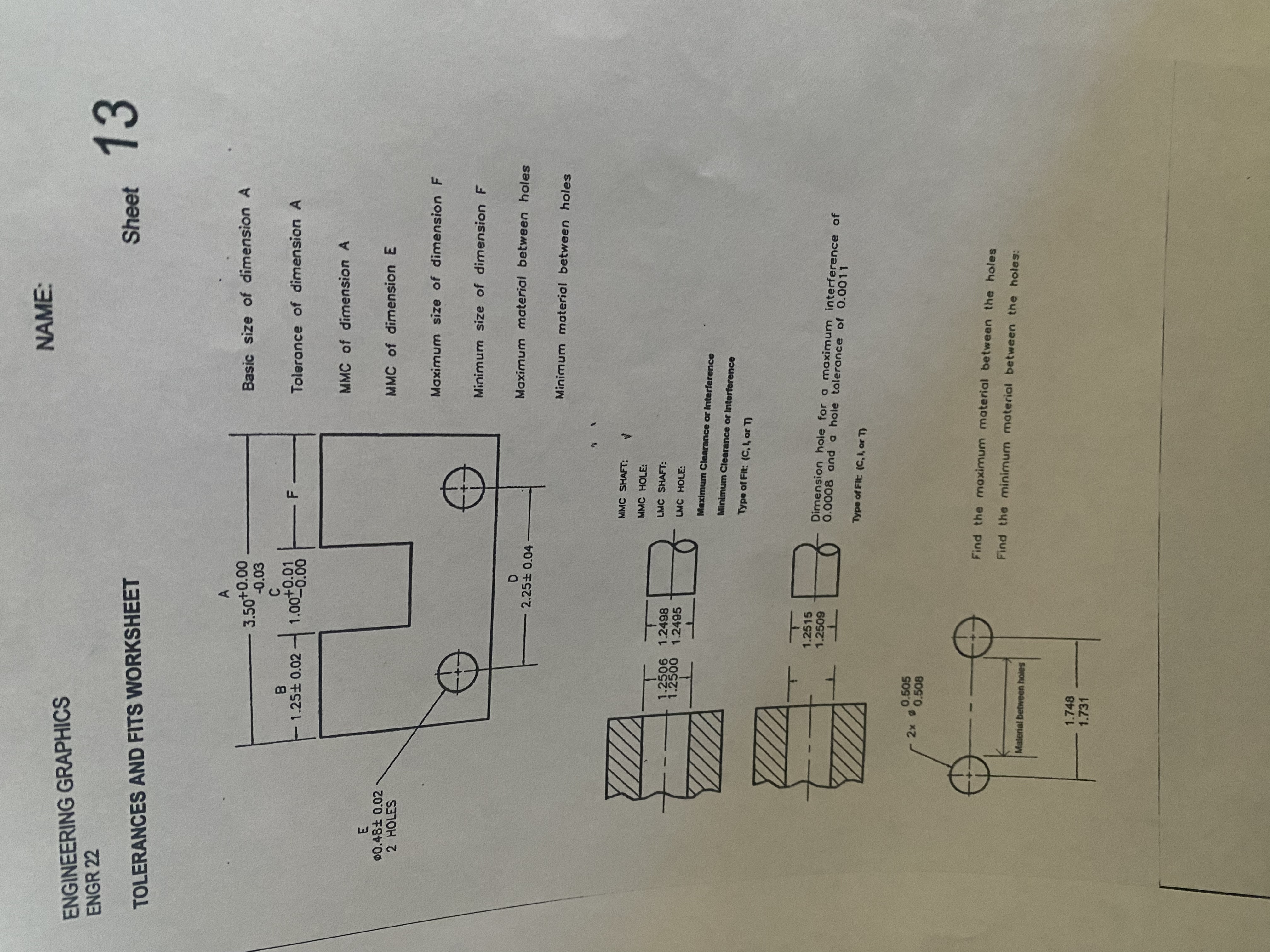

ENGINEERING GRAPHICS

ENGR $22$

TOLERANCES AND FITS WORKSHEET

Basic size of dimension $A$

Tolerance of dimension A

MMC of dimension $A$

MMC of dimension $E$

Maximum size of dimension $F$

Minimum size of dimension $F$

Maximum material between holes

Minimum moterial between holes

MMC SHAFT:

MMC HOLE:

LMC SHAFT:

LMC HOLE:

Maximum Clearance or Interference

Minimum Clearance or interference

Type of Fit: $($C$,1,$ or $7)$

Dimension hole for a maximum interference of

$0\mathrm{.}0008$ and a hole tolerance of $0\mathrm{.}0011$

Type of Fit: $($C$,1,$ or $7)$

Find the moximum material between the holes

Find the minimum material between the holes:
