Question: ENGR 2 3 0 1 Homework # 8 3 . Determine the internal normal, shear, and moment reaction at points C and D in the

ENGR 2301 Homework #8

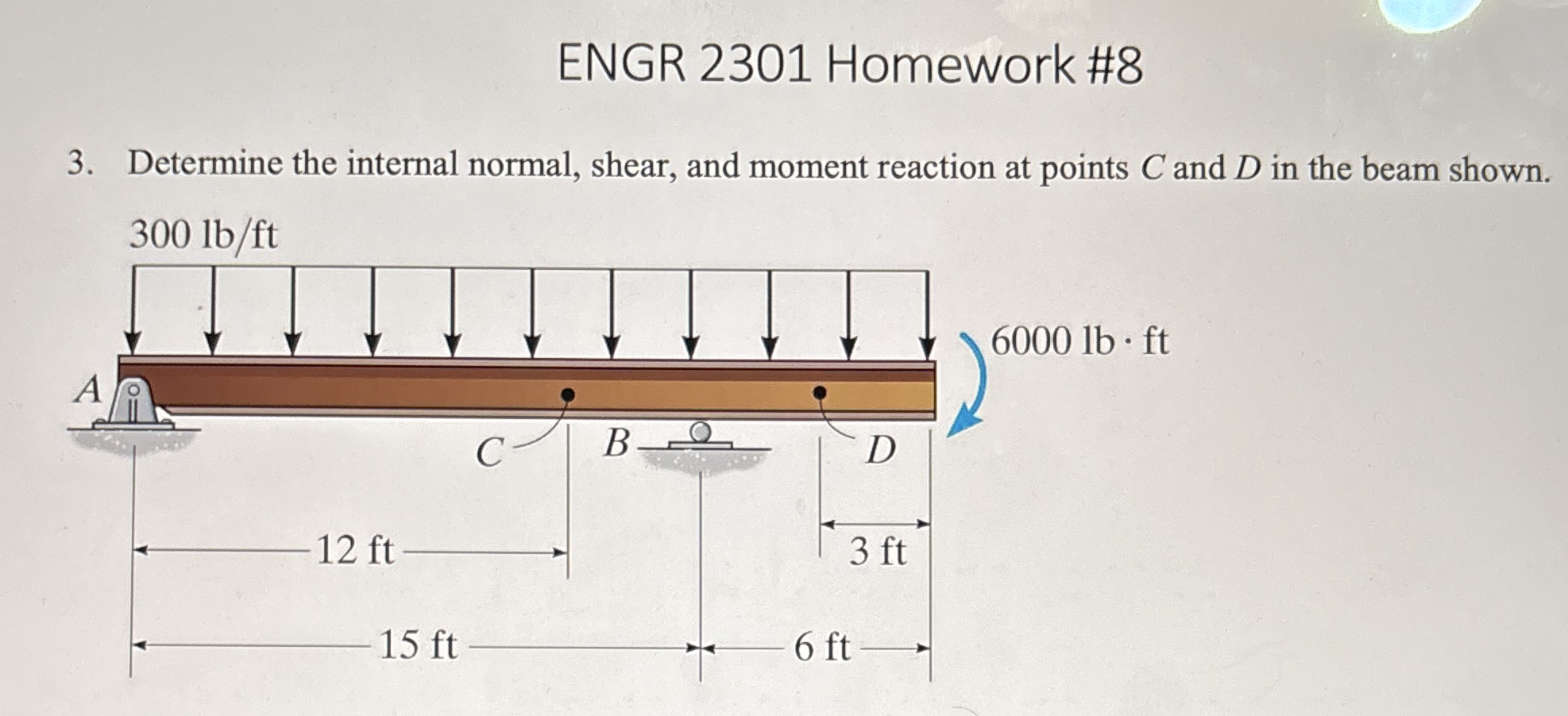

3. Determine the internal normal, shear, and moment reaction at points C and D in the beam shown. Then draw the shear and moment diagram and find the maximum and minimum values and determine their magnitudes at those locations
ENGR 2 3 0 1 Homework # 8 3 . Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
