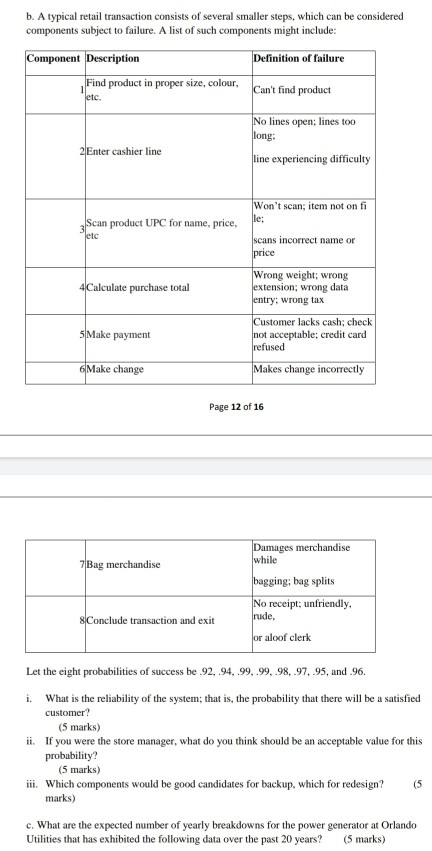

estion 4 (25 marks) a. Wayne Sharp has a system composed of three components in parallel. The components have the following reliabilities: R1 = 0.90, R2 = 0.95, R3 = 0.85 What is the reliability of the system?
