Question: Ex . 6 . 3 3 . The bax beam shown in Fig. 6 . 5 5 is made up of four 1 5 2

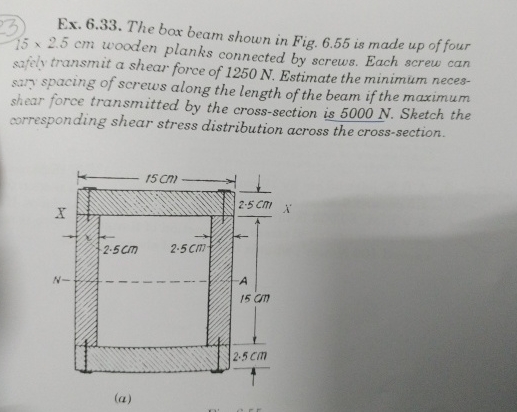

Ex.6.33. The bax beam shown in Fig. 6.55 is made up of four 152.5cm wooden planks connected by screws. Each screw can sajely transmit a shear force of 1250 N . Estimate the minimum necessary spacing of screws along the length of the beam if the maximum shear force transmitted by the cross-section is 5000 N . Sketch the corresponding shear stress distribution across the cross-section.
