EX8-1 (Static) Given the network plan that...

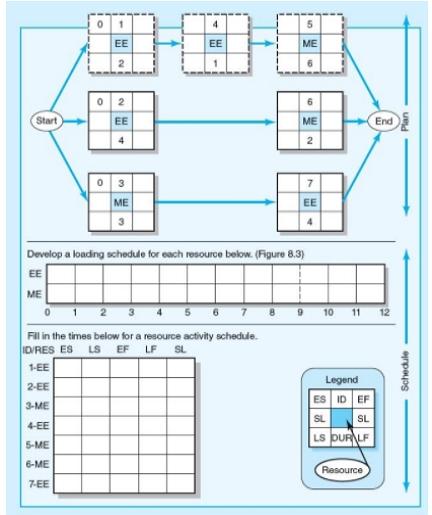

Given the network plan that follows, compute the early, late, and slack times. What is the project duration? Please explain in detail how you got your answers so that I can follow along. The last time I posted this question it was completely wrong. Thank You

	The time-constrained length of the project is:

Without regard to resources, what is the slack for:

Activity 2?
Activity 6?
Activity 7?

Using any approach you wish (e.g., trial and error), develop a loading chart for resource Electrical Engineers (EE), and resource, Mechanical Engineers (ME). Assume only one of each resource exists. Given your resource schedule, compute the early, late, and slack times for your project. What is the project duration now?

	The project duration now is

Which activities are now critical? (You may select more than one answer. Single click the box with the question mark to produce a check mark for a correct answer and double click the box with the question mark to empty the box for a wrong answer.)

check all that apply

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• Recompute your slack for each activity given your new schedule. What is the slack for:

Activity 2?
Activity 6?
Activity 7?

07 EE EE ME Start 02 EE 4 End ME 2 03 ME EE Develop a loading schedule for each resource below. (Figure 8.3) EE ME 9 10 11 12 Fill in the times below for a resource activity schedule. ID/RES ES LSEF LF SL 1-EE 2-EE Schedule Legend ES DEF SL SL 3-ME 4.EE LS DURALF 5-ME 6-ME Resource 7-EE 07 EE EE ME Start 02 EE 4 End ME 2 03 ME EE Develop a loading schedule for each resource below. (Figure 8.3) EE ME 9 10 11 12 Fill in the times below for a resource activity schedule. ID/RES ES LSEF LF SL 1-EE 2-EE Schedule Legend ES DEF SL SL 3-ME 4.EE LS DURALF 5-ME 6-ME Resource 7-EE
