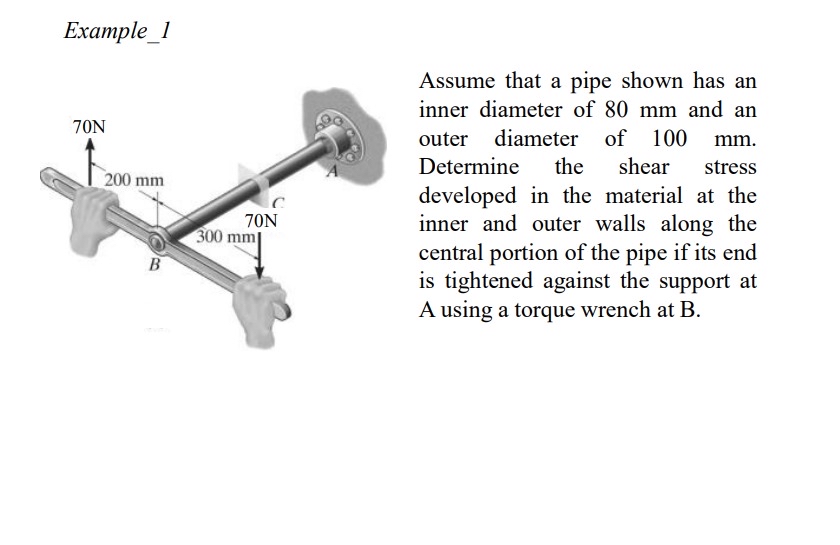

Example$\_1$

Assume that a pipe shown has an inner diameter of $80$ mm and an outer diameter of $100$ mm $.$ Determine the shear stress developed in the material at the inner and outer walls along the central portion of the pipe if its end is tightened against the support at A using a torque wrench at B $.$
