Question: Example 3 - 8 The plate shown in Fig. 3 . 1 4 is connected to a 1 1 0 - in plate with longitudinal

Example

3 - 8

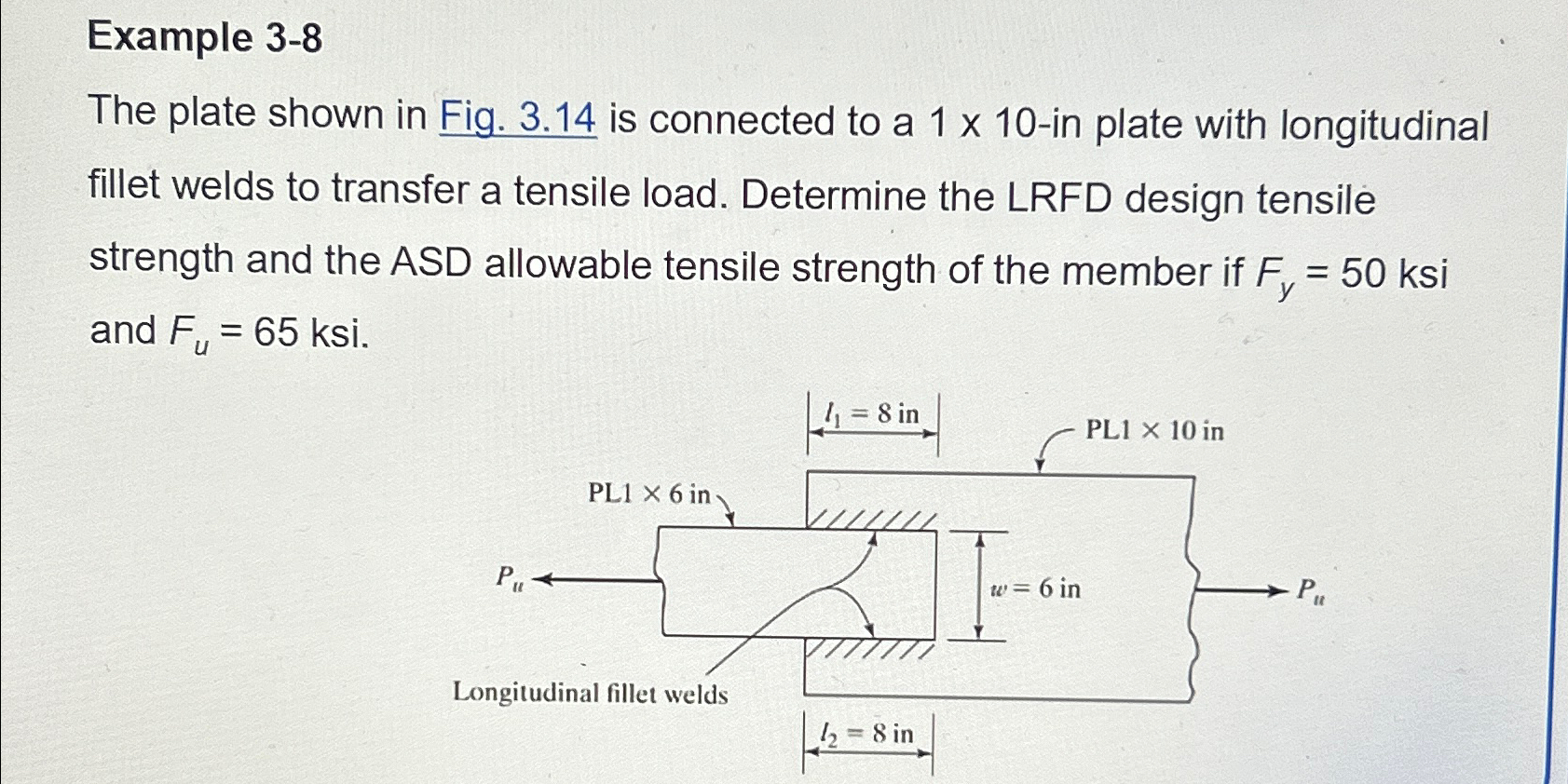

The plate shown in Fig.

3.14

is connected to a

1 10 -

in plate with longitudinal fillet welds to transfer a tensile load. Determine the LRFD design tensile strength and the ASD allowable tensile strength of the member if

F_{y} = 50

ksi and

F_{u} = 65

ksi.

Example 3 - 8 The plate shown in Fig. 3 . 1 4 is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
