Question: Example 4 The shaft is supported by two bearings and is subjected to three torques. Determine the shear stress developed at points A and B

Example 4

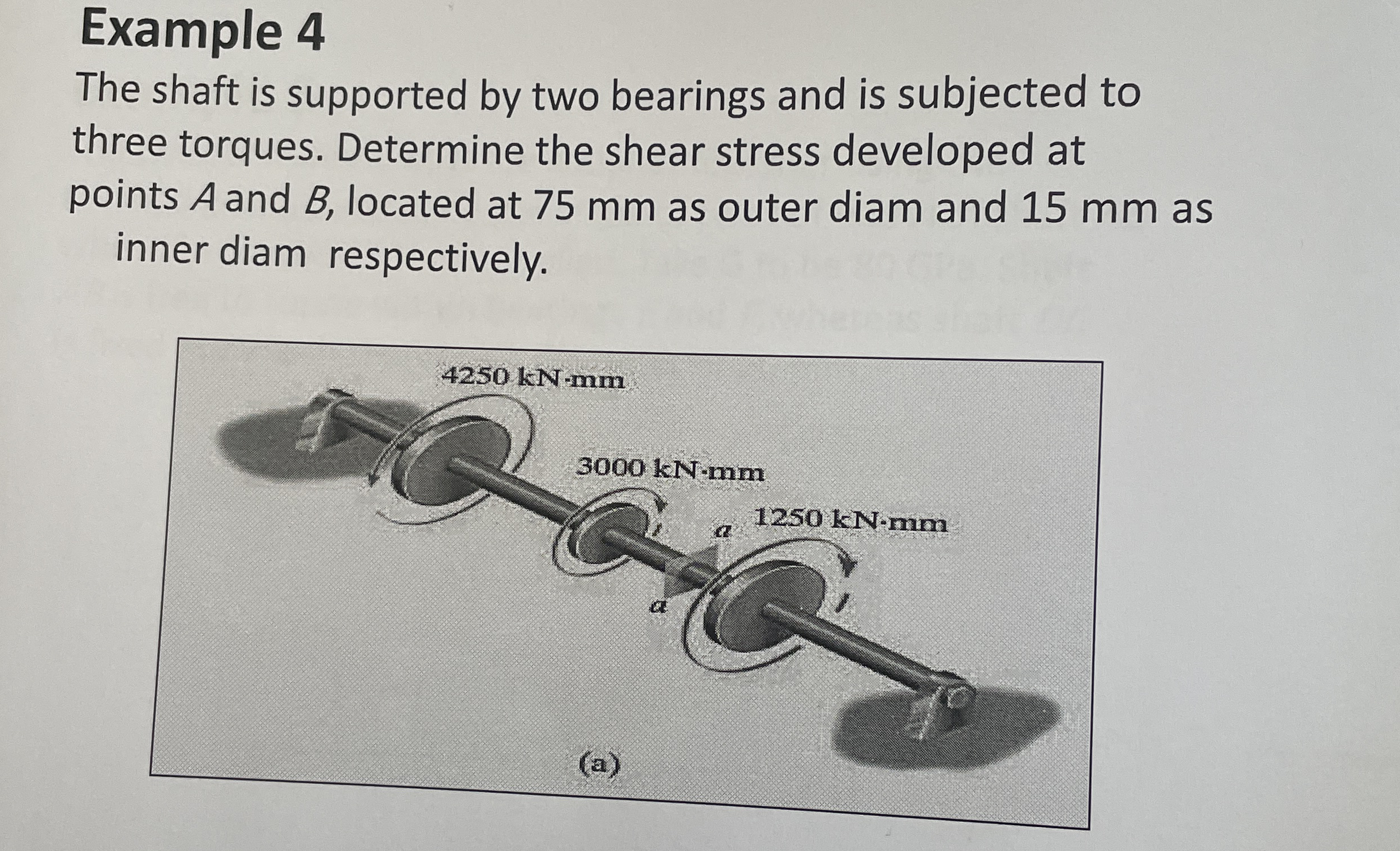

The shaft is supported by two bearings and is subjected to
three torques. Determine the shear stress developed at
points A and B, located at 75 mm as outer diam and 15 mm as
inner diam respectively.
Example 4 The shaft is supported by two bearings

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
