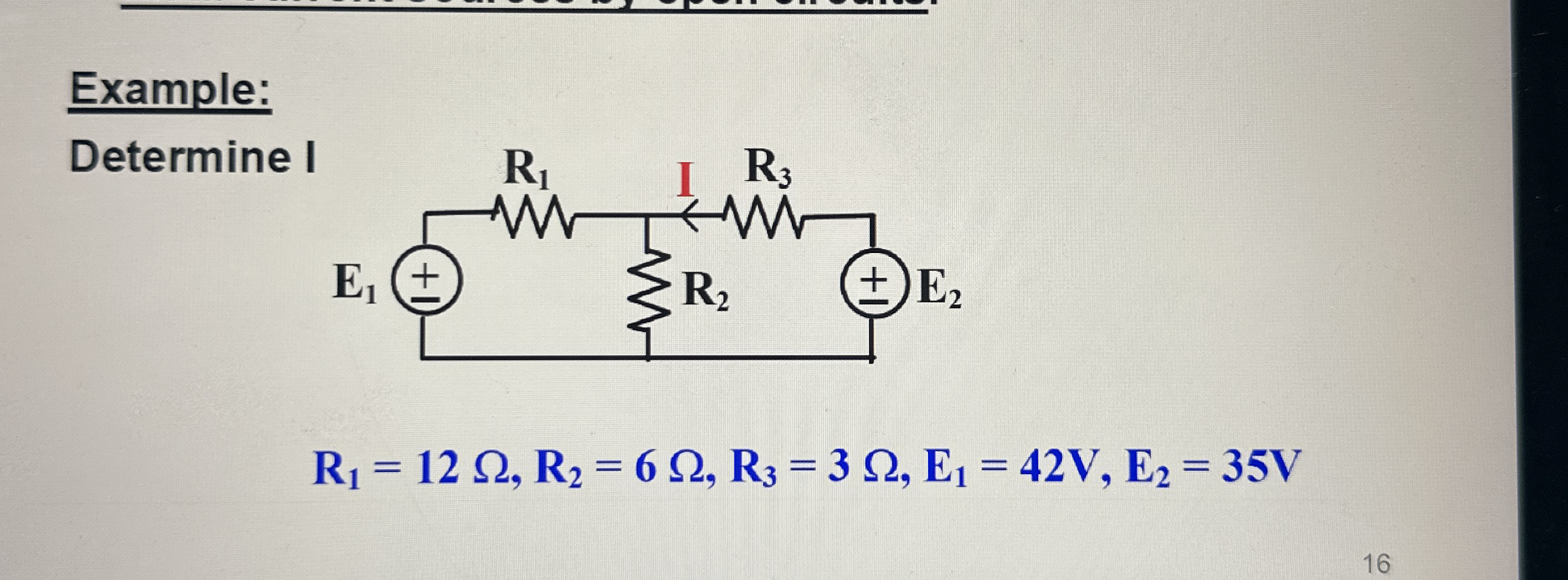

Question: Example: Determine I R 1 = 1 2 , R 2 = 6 , R 3 = 3 , E 1 = 4 2 V

Example:
Determine I
R1=12,R2=6,R3=3,E1=42V,E2=35V
Example: Determine I R 1 = 1 2 , R 2 = 6 , R 3 =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
