Question: Example problem 1 The engine hoist is used to lift the 2 0 0 kg engine. Identify any two force members. Determine the force acting

Example problem 1

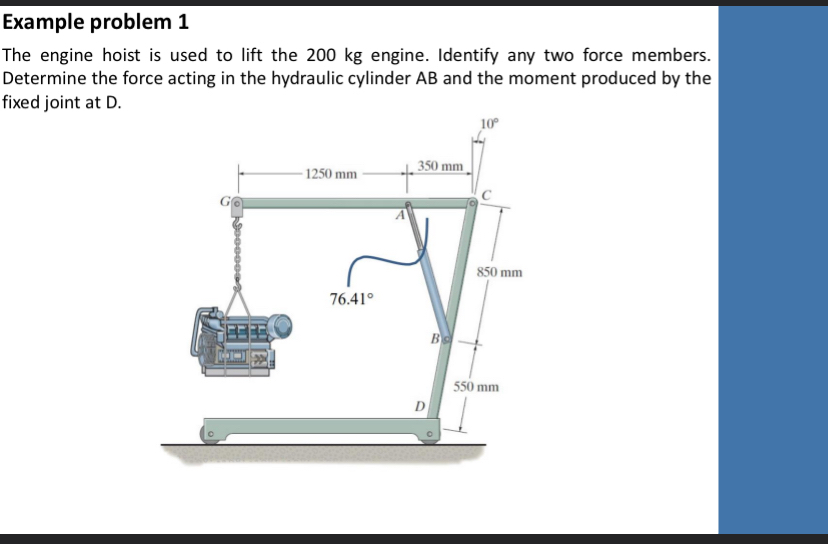

The engine hoist is used to lift the 200 kg engine. Identify any two force members. Determine the force acting in the hydraulic cylinder AB and the moment produced by the fixed joint at D.
Example problem 1 The engine hoist is used to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
