Question: Exercise 1 0 . 1 2 Two loads are exerted on the bent rod OBCD, 5 0 0 N at A and 1 0 0

Exercise 10.12

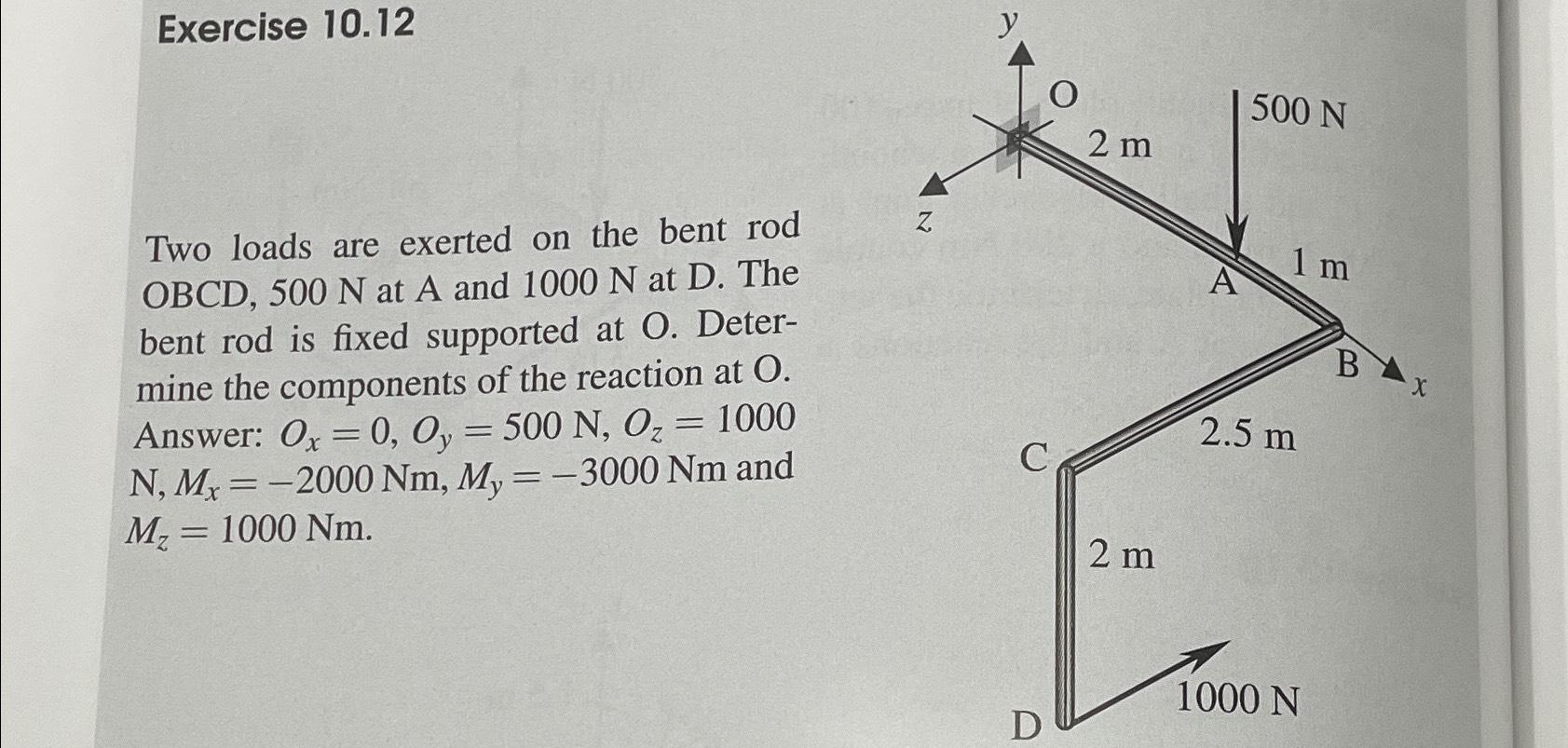

Two loads are exerted on the bent rod OBCD,500N at A and 1000N at D. The bent rod is fixed supported at O. Determine the components of the reaction at O. Answer: Ox=0,Oy=500N,Oz=1000N,Mx=-2000Nm,My=-3000Nm and Mz=1000Nm.
Exercise 10.12 Two loads are exerted on the bent rod OBCD,500N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
