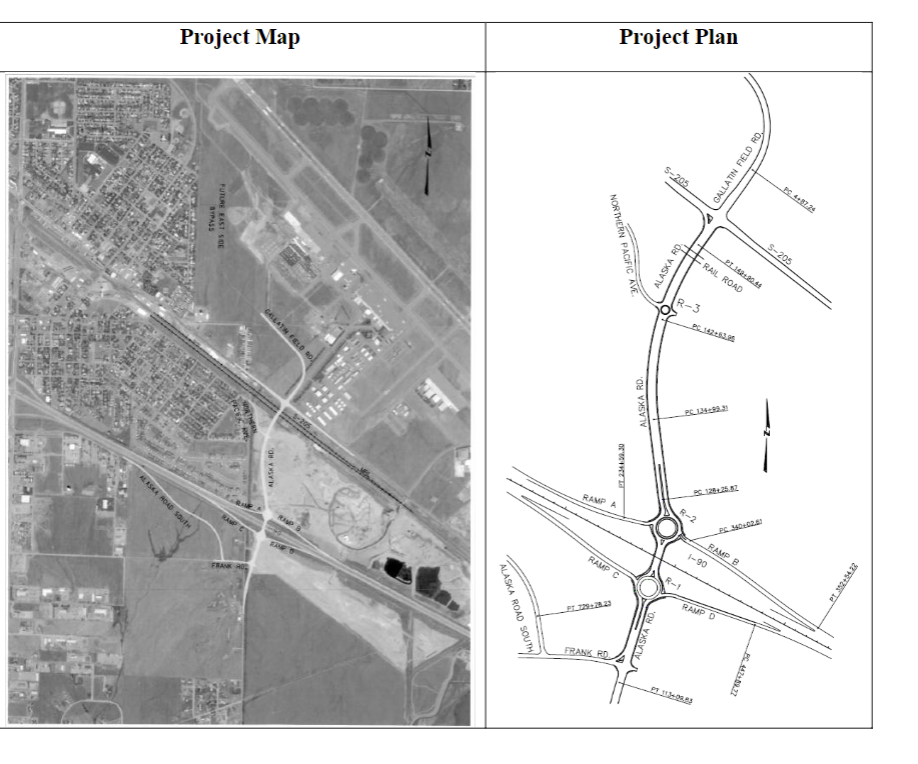

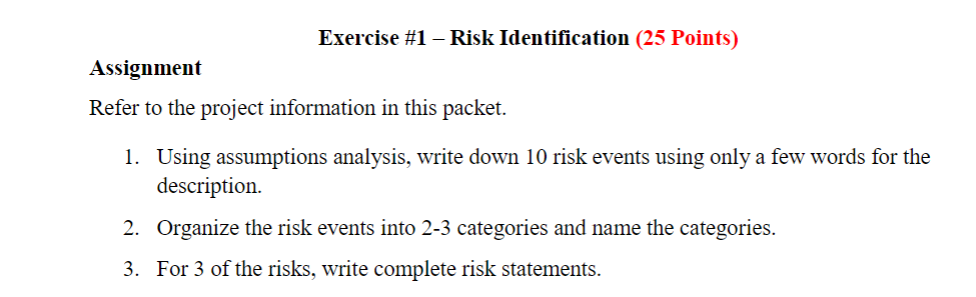

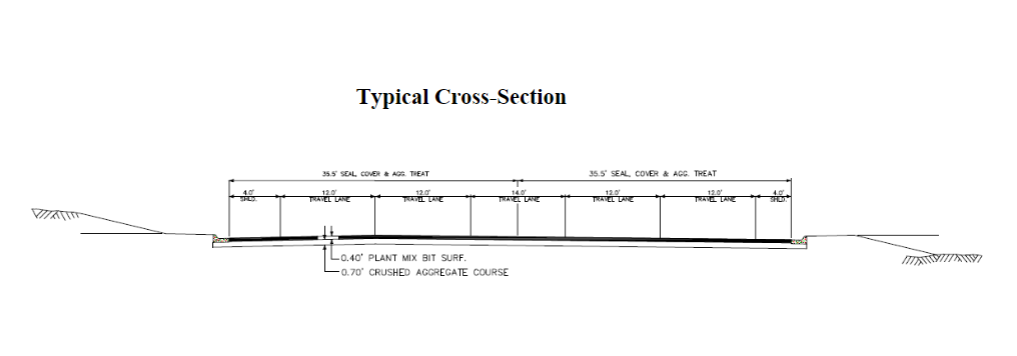

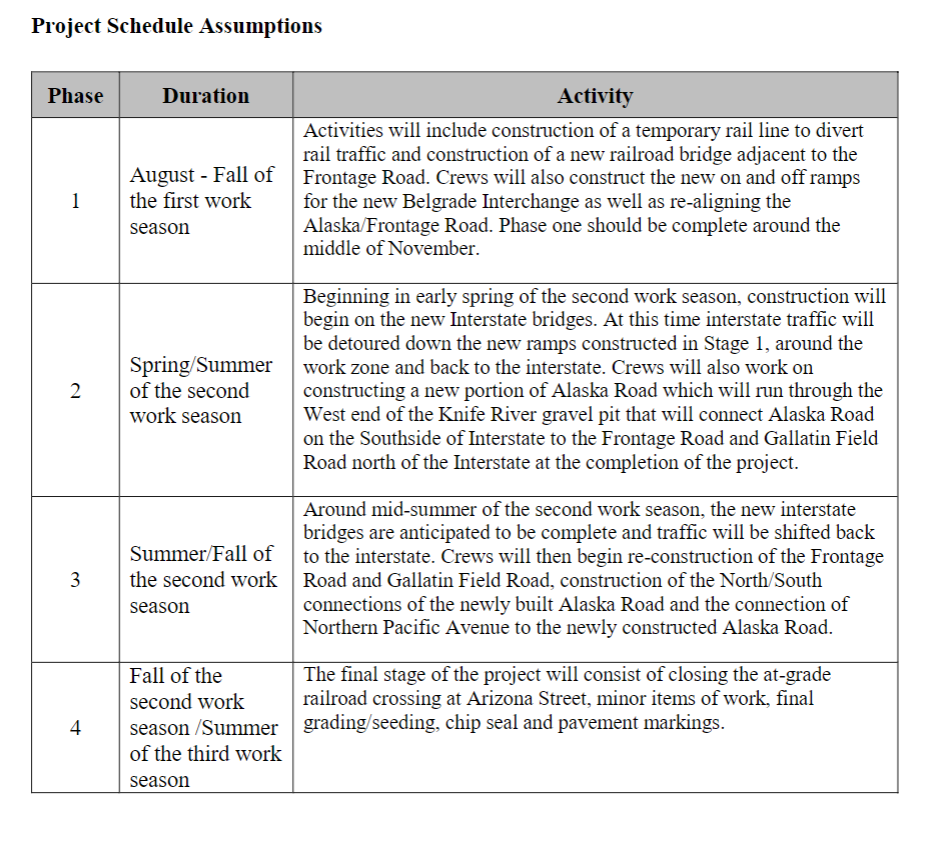

Exercise #1 - Risk Identification (25 Points) Assignment Refer to the project information in this packet. 1. Using assumptions analysis, write down 10 risk events using only a few words for the description 2. Organize the risk events into 2-3 categories and name the categories. 3. For 3 of the risks, write complete risk statements. Project Map Project Plan Me S-205 GALLATIN FELD RD, BYPASS FUTURE EAST SE NORTHERN PACIFIC AVE #RAIL ROAD S-205 ALASKA ROU R-3 07 CELTN FELORD .. ALASKA RD ALASKAR PT 24 11.30 RAMPA ALASKA ROAD SOUTH 2-3 72000 RAMP B RAMP C 1-90 RAMPO ALASKA ROAD SOUTH FRANKRO ALASKA PC 44262.22 Typical Cross-Section 355 SEAL COVERAGE THEAT 35.5' SEAL COVER & AGC THEAT TRAVEL URE PARCE URE TAL DE -0.40 PLANT MIX BIT SURF -0.70 CRUSHED AGGREGATE COURSE ITARVITA Project Schedule Assumptions Phase Duration Activity Activities will include construction of a temporary rail line to divert rail traffic and construction of a new railroad bridge adjacent to the Frontage Road. Crews will also construct the new on and off ramps for the new Belgrade Interchange as well as re-aligning the Alaska/Frontage Road. Phase one should be complete around the middle of November. August - Fall of the first work season 1 Beginning in early spring of the second work season, construction will begin on the new Interstate bridges. At this time interstate traffic will be detoured down the new ramps constructed in Stage 1, around the work zone and back to the interstate. Crews will also work on constructing a new portion of Alaska Road which will run through the West end of the Knife River gravel pit that will connect Alaska Road on the Southside of Interstate to the Frontage Road and Gallatin Field Road north of the Interstate at the completion of the project. Spring/Summer of the second work season 2 Around mid-summer of the second work season, the new interstate bridges are anticipated to be complete and traffic will be shifted back to the interstate. Crews will then begin re-construction of the Frontage Road and Gallatin Field Road, construction of the North South connections of the newly built Alaska Road and the connection of Northern Pacific Avenue to the newly constructed Alaska Road. 3 Summer/Fall of the second work season 3 Fall of the second work season /Summer of the third work season The final stage of the project will consist of closing the at-grade railroad crossing at Arizona Street, minor items of work, final grading seeding, chip seal and pavement markings. 4 Purpose: Provide greater intermodal connectivity and to improve regional mobility Project: Construct new interchange (Base Cost Estimate = $15,000,000) Descriptor: Interstate - New horizontal and vertical alignments for the new crossroad Concept Definition: South connector roadway from Alaska to interchange. North connector roadway from the interchange, under the railroad, connecting with MT 205, and to Gallatin. Realignment of Alaska Frontage Road. Structures to grade-separate connector roadway from the interstate and the railroad. Closure of two current at-grade crossings. Physical Characteristics: In the area of the project, interstate is a four-lane divided facility, initially constructed in 1966 with 8 of cement concrete pavement over 24 of crushed based course. The project lies on the rural/urban interface. It is anticipated that both urban and rural standards will be used on the project. The general terrain is level. Grades do not exceed 4% on the project. Alaska Road is a new segment of roadway. It is proposed to be classified as an Urban Principal Arterial. The design speed shall be 45 mph. The crossroad will have 12' travel lines, 14' turn lanes, and 6 outside shoulders, with curb and gutter, and 5' attached sidewalks. . a . . Exercise #1 - Risk Identification (25 Points) Assignment Refer to the project information in this packet. 1. Using assumptions analysis, write down 10 risk events using only a few words for the description 2. Organize the risk events into 2-3 categories and name the categories. 3. For 3 of the risks, write complete risk statements. Project Map Project Plan Me S-205 GALLATIN FELD RD, BYPASS FUTURE EAST SE NORTHERN PACIFIC AVE #RAIL ROAD S-205 ALASKA ROU R-3 07 CELTN FELORD .. ALASKA RD ALASKAR PT 24 11.30 RAMPA ALASKA ROAD SOUTH 2-3 72000 RAMP B RAMP C 1-90 RAMPO ALASKA ROAD SOUTH FRANKRO ALASKA PC 44262.22 Typical Cross-Section 355 SEAL COVERAGE THEAT 35.5' SEAL COVER & AGC THEAT TRAVEL URE PARCE URE TAL DE -0.40 PLANT MIX BIT SURF -0.70 CRUSHED AGGREGATE COURSE ITARVITA Project Schedule Assumptions Phase Duration Activity Activities will include construction of a temporary rail line to divert rail traffic and construction of a new railroad bridge adjacent to the Frontage Road. Crews will also construct the new on and off ramps for the new Belgrade Interchange as well as re-aligning the Alaska/Frontage Road. Phase one should be complete around the middle of November. August - Fall of the first work season 1 Beginning in early spring of the second work season, construction will begin on the new Interstate bridges. At this time interstate traffic will be detoured down the new ramps constructed in Stage 1, around the work zone and back to the interstate. Crews will also work on constructing a new portion of Alaska Road which will run through the West end of the Knife River gravel pit that will connect Alaska Road on the Southside of Interstate to the Frontage Road and Gallatin Field Road north of the Interstate at the completion of the project. Spring/Summer of the second work season 2 Around mid-summer of the second work season, the new interstate bridges are anticipated to be complete and traffic will be shifted back to the interstate. Crews will then begin re-construction of the Frontage Road and Gallatin Field Road, construction of the North South connections of the newly built Alaska Road and the connection of Northern Pacific Avenue to the newly constructed Alaska Road. 3 Summer/Fall of the second work season 3 Fall of the second work season /Summer of the third work season The final stage of the project will consist of closing the at-grade railroad crossing at Arizona Street, minor items of work, final grading seeding, chip seal and pavement markings. 4 Purpose: Provide greater intermodal connectivity and to improve regional mobility Project: Construct new interchange (Base Cost Estimate = $15,000,000) Descriptor: Interstate - New horizontal and vertical alignments for the new crossroad Concept Definition: South connector roadway from Alaska to interchange. North connector roadway from the interchange, under the railroad, connecting with MT 205, and to Gallatin. Realignment of Alaska Frontage Road. Structures to grade-separate connector roadway from the interstate and the railroad. Closure of two current at-grade crossings. Physical Characteristics: In the area of the project, interstate is a four-lane divided facility, initially constructed in 1966 with 8 of cement concrete pavement over 24 of crushed based course. The project lies on the rural/urban interface. It is anticipated that both urban and rural standards will be used on the project. The general terrain is level. Grades do not exceed 4% on the project. Alaska Road is a new segment of roadway. It is proposed to be classified as an Urban Principal Arterial. The design speed shall be 45 mph. The crossroad will have 12' travel lines, 14' turn lanes, and 6 outside shoulders, with curb and gutter, and 5' attached sidewalks. . a
