Question: Exercise (2): (2 + 2points) a) Write the truth table for function F, where F(A,B,C)=A+BC b) Write the logical expression for function F(x,y,z) as SOP,

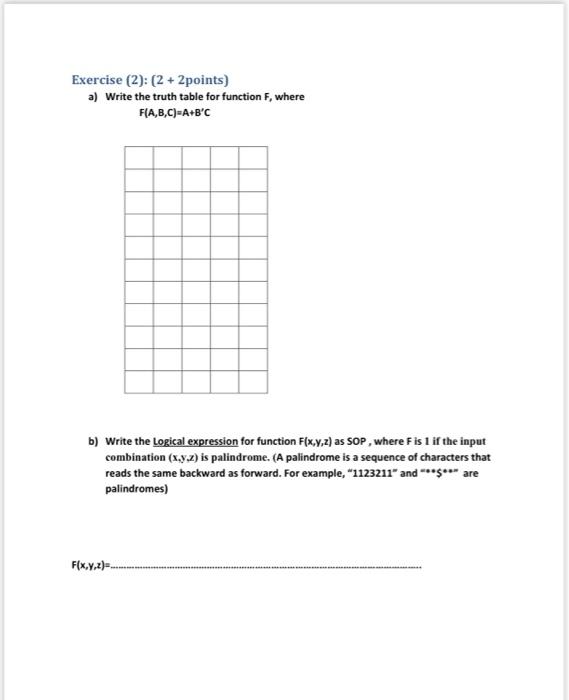

Exercise (2): (2 + 2points) a) Write the truth table for function F, where F(A,B,C)=A+BC b) Write the logical expression for function F(x,y,z) as SOP, where Fis 1 if the input combination (N.Y.Z) is palindrome. (A palindrome is a sequence of characters that reads the same backward as forward. For example, "1123211" and ******* are palindromes) Fix,y,z)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

please state your calculations clearly. and make this understandable. thanks! Question 1: Simplify the following Boolean function using the Karnaugh Map. Sketch the circuit diagram for each minimized...

please submit the handwritten answer on paper. digital not easy to understand. thanks Question 2: Consider a Boolean function f(a,b,c,d) (4 binary inputs: a,b,c,d, and 1 output) that outputs the...

Question 1: Simplify the following Boolean function using the Karnaugh Map. Sketch the circuit diagram for each minimized implementation of the function. (a) F(A,B,C)=m(0,1,2,5) (b)...

Question 3 : Simplify the following Boolean function using the Karnaugh Map. Sketch the circuit diagram for each minimized implementation of the function. ( a ) F ( A , B , C ) = m ( 1 , 3 , 4 ) ( b...

write it on paper. please thanks Question 2: Consider a Boolean function f(a,b,c,d) (4 binary inputs: a,b,c,d, and 1 output) that outputs the value 1 if and only if the number of 1's in a and b is...

Question 2: Consider a Boolean function f(a,b,c,d) (4 binary inputs: a,b,c,d, and 1 output) that outputs the value 1 if and only if the number of 1's in a and b is less than or equal to the number of...

23. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form. x y z F 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 0 26. Given...

Note: For simplicity in writing in problems 4, 5 and 6, the expression A.B is denoted by AB. 1. Convert the following numbers to the required representations for each of the following decimal...

1. Obtain the truth table of the function: F=x'Y'z + xyz + xy' B C+ A C+A ~B+B = A + B. Use truth table to show 2. Prove the equality: A your solution. 3- For the following logic circuit: a. Write...

Please use the following truth table for Questions 1 and 2. A B C DY 0 O 00 0 O 10 0 110 0 1 101 0 1 1 11 1 0 1 11 1 10 2.A.) (10 POINTS) Write the corresponding product-of-sums (POS) canonical form...
