Question: Exercise 5 - 1 2 : Determine currents i _ ( 1 ) and i _ ( 2 ) in the circuit of Fig. E

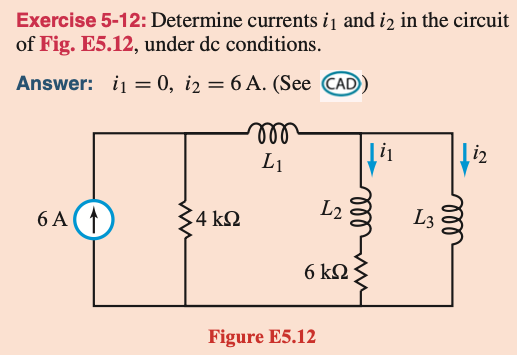

Exercise 5-12: Determine currents i_(1) and i_(2) in the circuit of Fig. E5.12, under dc conditions.
Exercise 5 - 1 2 : Determine currents i _ ( 1 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
