Question: EXERCISE # 7 - RETAINING WALL, FACTOR OF SAFETY Using the following data: Weight of concrete = 1 4 5 pcf Weight of earth =

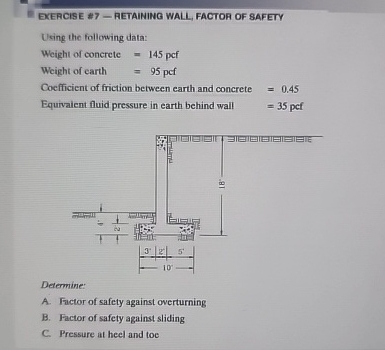

EXERCISE #7-RETAINING WALL, FACTOR OF SAFETY
Using the following data:
Weight of concrete =145 pcf
Weight of earth =95pcf
Coefficient of friction between earth and concrete =0.45
Equivalent fluid pressure in earth behind wall ,=35pcf
Delemine:
A. Factor of safety against overturning
B. Factor of safety against sliding
C. Pressure at heel and toe
EXERCISE # 7 - RETAINING WALL, FACTOR OF SAFETY

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
