Question: Exercise ( Problem # 7 6 in your book ) Consider the drawing to the right. Is bonus tolerance possible? If so , what

Exercise (Problem \#76 in your book)

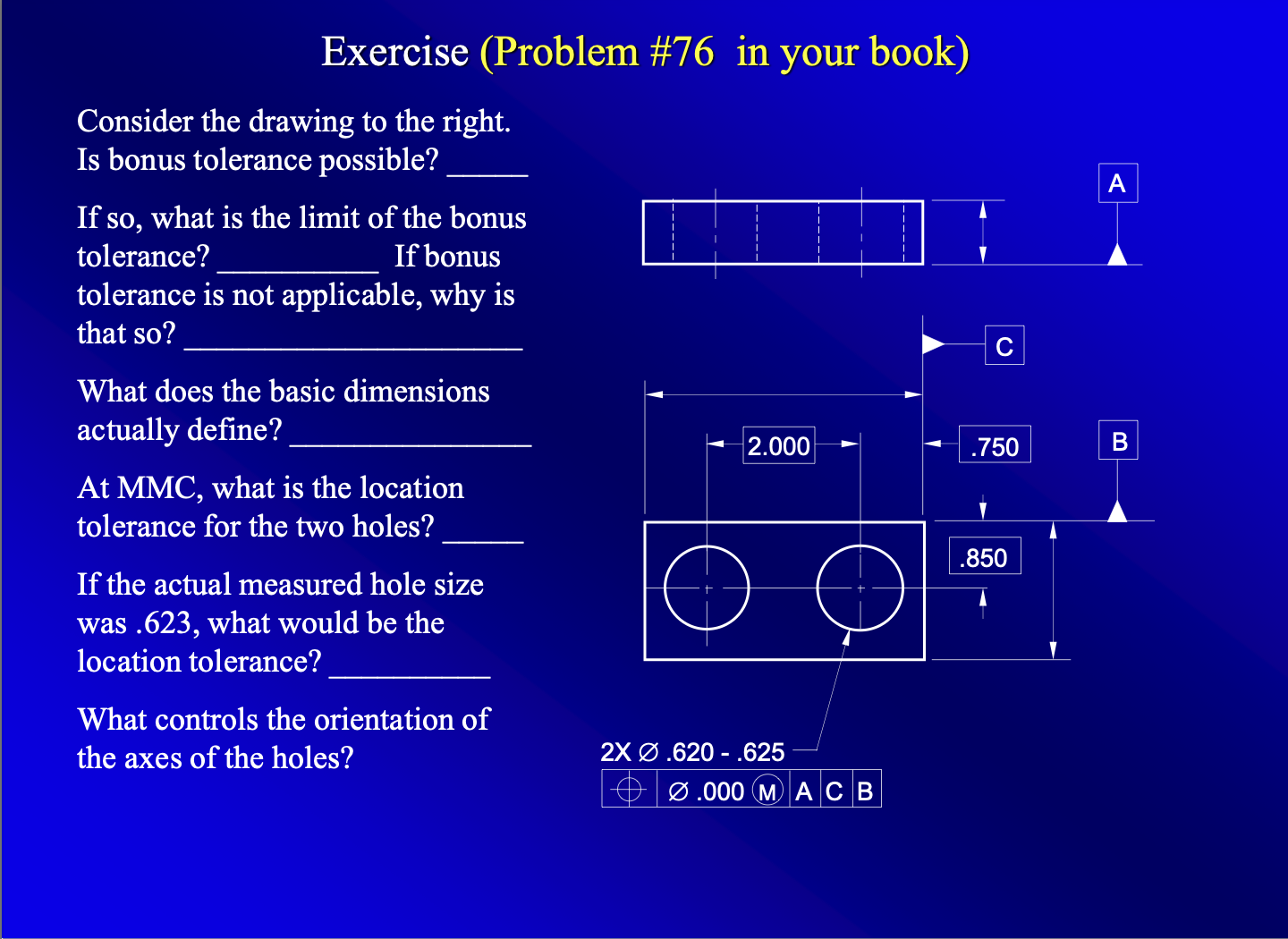

Consider the drawing to the right. Is bonus tolerance possible?
If so, what is the limit of the bonus tolerance? If bonus tolerance is not applicable, why is that so?
What does the basic dimensions actually define?
At MMC, what is the location tolerance for the two holes?
If the actual measured hole size was .623, what would be the location tolerance? What controls the orientation of the axes of the holes?
