Question: Exercise: Software List Sometimes it takes more than just a glance at the class diagram to spot problems with a design. Consider the following class

Exercise: Software List Sometimes it takes more than just a glance

Exercise: Software List Sometimes it takes more than just a glance at the class diagram to spot problems with a design.

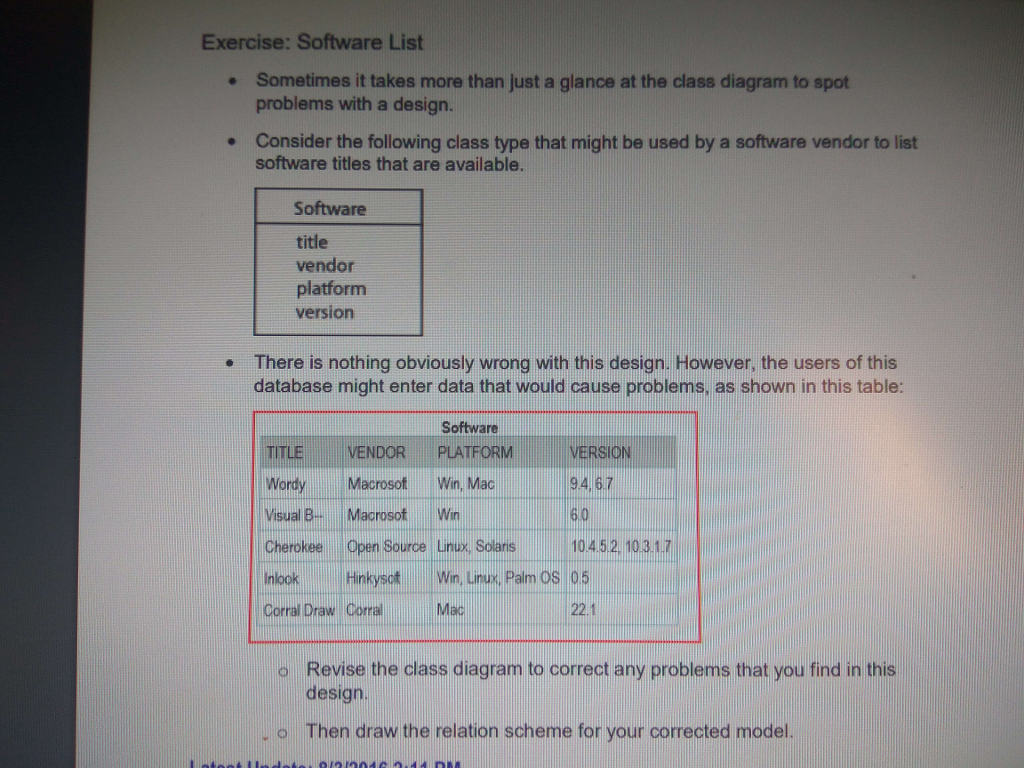

Consider the following class type that might be used by a software vendor to list software titles that are available.

There is nothing obviously wrong with this design. However, the users of this database might enter data that would cause problems, as shown in this table

o Revise the class diagram to correct any problems that you find in this design. o Then draw the relation scheme for your corrected model.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
