Question: A3. A signal ST consists of the sum of three sinusoids with frequencies of 20Hz, 40Hz and 130Hz respectively. All three sinusoids have an

A3. A signal ST consists of the sum of three sinusoids with frequencies of 20Hz, 40Hz and 130Hz respectively.

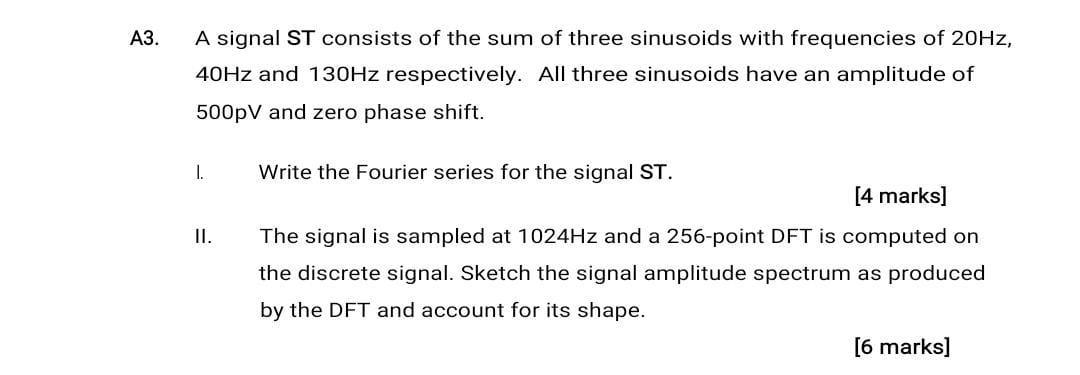

A3. A signal ST consists of the sum of three sinusoids with frequencies of 20Hz, 40Hz and 130Hz respectively. All three sinusoids have an amplitude of 500pV and zero phase shift. I. II. Write the Fourier series for the signal ST. [4 marks] The signal is sampled at 1024Hz and a 256-point DFT is computed on the discrete signal. Sketch the signal amplitude spectrum as produced by the DFT and account for its shape. [6 marks]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Heres the Fourier series for the signal ST STt 500pV sin2 20 t 500pV sin2 40 t 500pV sin2 130 t Expl... View full answer
