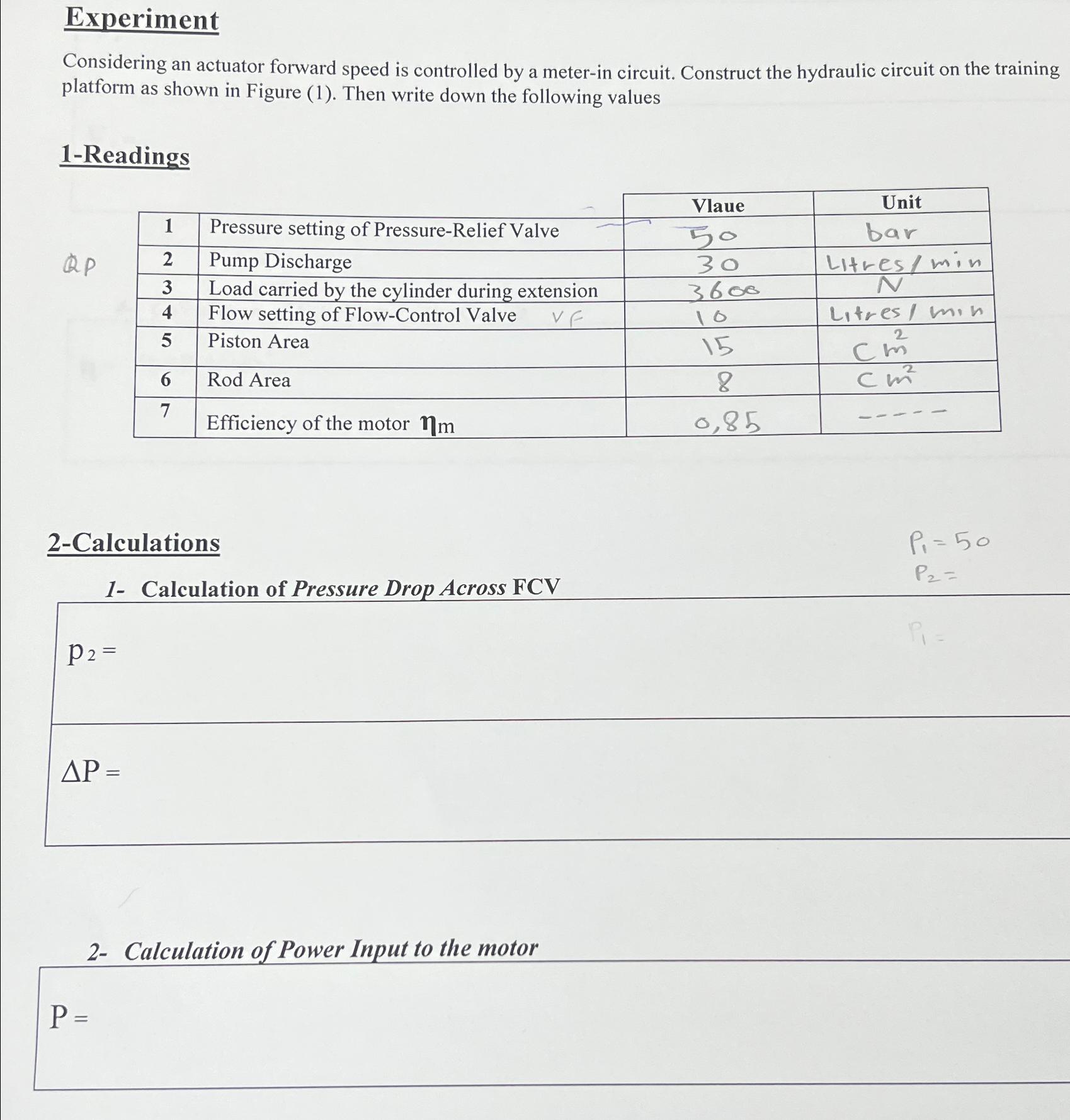

Experiment

Considering an actuator forward speed is controlled by a meter$-$in circuit. Construct the hydraulic circuit on the training platform as shown in Figure $(1).$ Then write down the following values

$1-$Readings ${?}_{(})$

Qp

$\backslash$table$[[,-,$Vlaue,Unit$],[1,$Pressure setting of Pressure$-$Relief Valve,$50,$bar$],[2,$Pump Discharge,$30,$Litres$/$min$],[3,$Load carried by the cylinder during extension,$3600,N$
