1) Interpret the frequency response of a coplanar waveguide 2) Discuss the the frequency responses for different line lengths 3) Discuss the frequency responses for different output loads Experiment ( Frequency Response of Coplanar Waveguide) Result (something like this) V1 R1 R 50 Ohm V1 U 1 V CL1 Subst Subst1 W 4 7 mm S 0 6 mm L 100 mm V2 R2 R 50 Ohm Subst1 er 4 6 h 1 6 mm t 35 um tand 2e 4 rho 0 022e 6 D 0 15e 6 Equation Eqn1 V1 mag mag(V1 v) V2 mag mag(V2 v) V1 phase phase(V 1 v) V2 phase phase(V2 v) ac simulation AC1 Type lin Start 1 MHz Stop 10 GHz Points 996

Question: 1) Interpret the frequency response of a coplanar waveguide. 2) Discuss the the frequency responses for different line lengths. 3) Discuss the frequency responses for

1) Interpret the frequency response of a coplanar waveguide.

2) Discuss the the frequency responses for different line lengths.

3) Discuss the frequency responses for different output loads.

Experiment: (Frequency Response of Coplanar Waveguide)

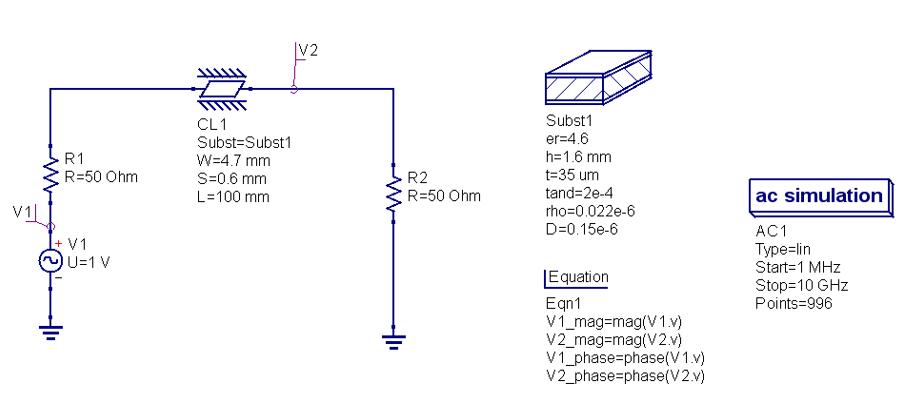

V1| R1 R=50 Ohm + V1 U=1 V CL1 Subst-Subst1 W=4.7 mm

Result (something like this)

S=0.6 mm L=100 mm |V2 + R2 R=50 Ohm Subst1 er=4.6 h=1.6

V1| R1 R=50 Ohm + V1 U=1 V CL1 Subst-Subst1 W=4.7 mm S=0.6 mm L=100 mm |V2 + R2 R=50 Ohm Subst1 er=4.6 h=1.6 mm t=35 um tand=2e-4 rho=0.022e-6 D=0.15e-6 Equation Eqn1 V1_mag-mag(V1.v) V2_mag-mag(V2.v) V1_phase-phase(V 1.v) V2_phase-phase(V2.v) ac simulation AC1 Type=lin Start=1 MHz Stop=10 GHz Points=996
