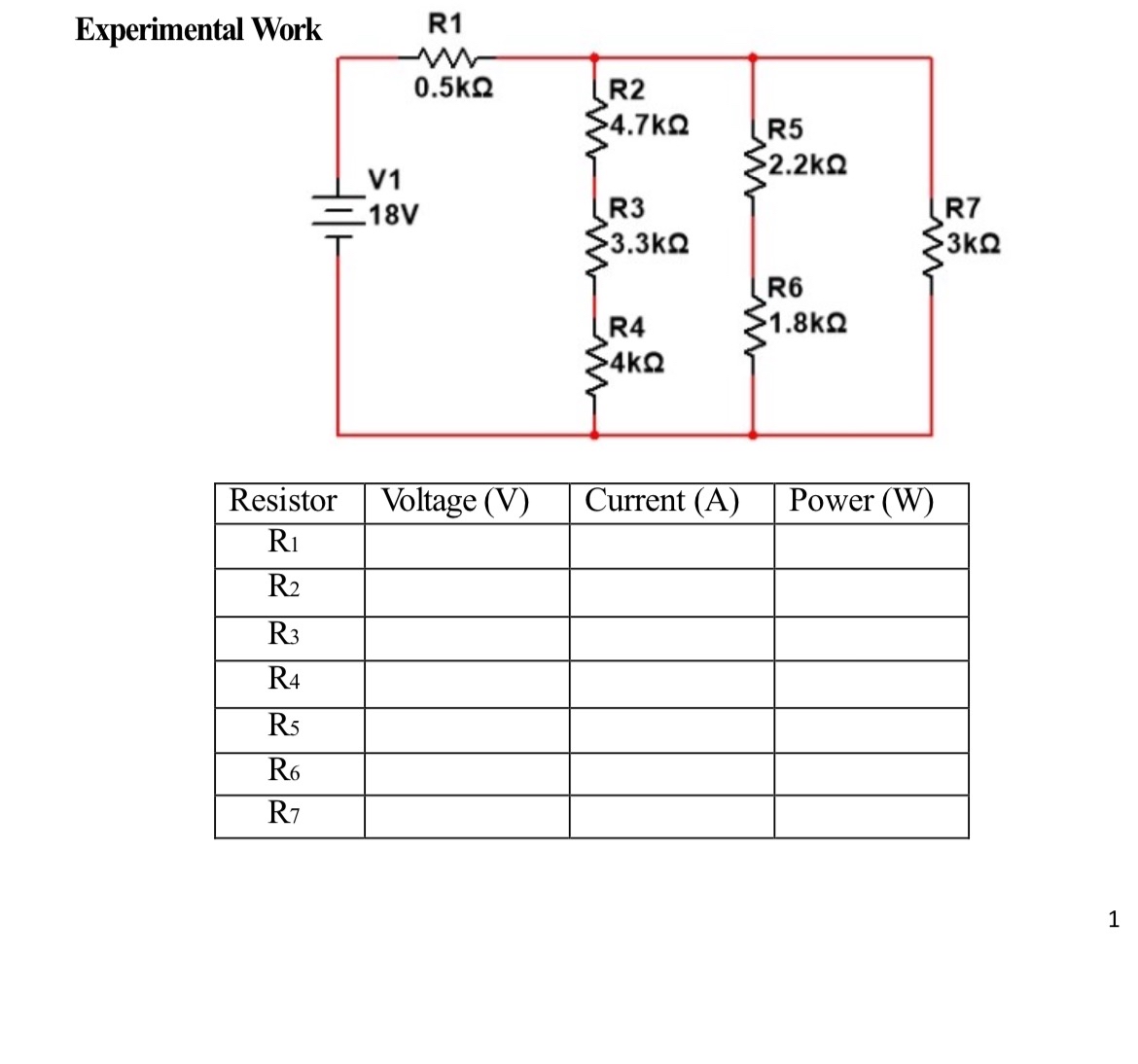

Question: Experimental ? - table [ [ Resistor , Voltage ( V ) , Current ( A ) , Power ( W ) ] ,

Experimental ?-
\table[[Resistor,Voltage (V),Current (A),Power (W)],[R1,,,],[R2,,,],[R3,,,],[R4,,,],[R5,,,],[R6,,,],[R7,,,]]
1 And how we can make this circuit on a bread board
Experimental ? - \ table [ [ Resistor , Voltage (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
