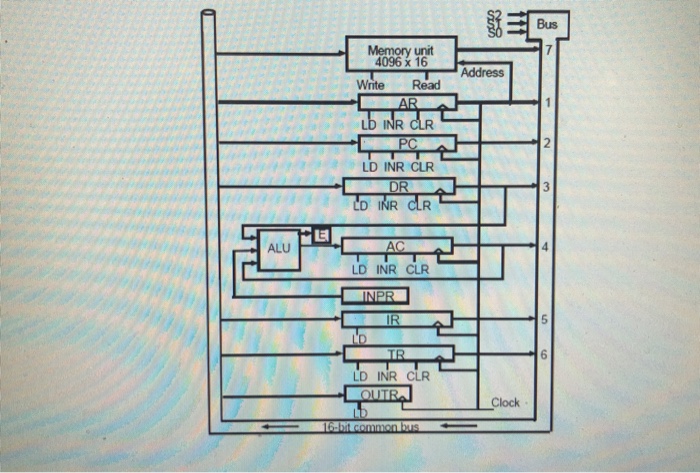

Question: Explain why each of the following microoperations cannot be executed during a single clock pulse in the system shown in Fig. 5-4. Specify a sequence

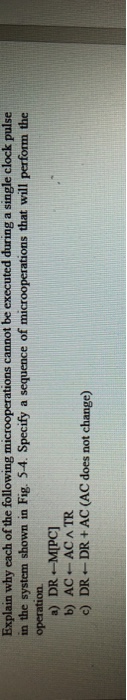

Explain why each of the following microoperations cannot be executed during a single clock pulse in the system shown in Fig. 5-4. Specify a sequence of microoperations that will perform the operation a) DR -MPC b) AC-AC A TR c) DR DR +AC (AC does not change)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

5 - 5 . Explain why each of the following microoperations cannot be executed during a single clock pulse in the system shown in Fig. 5 - 4 . Specify a sequence of microoperations that will perform...

Explain why each of the following microoperations cannot be executed during a single clock pulse then specify the right sequence of microoperation that will perform the operations a. IR M[PC] b. AC...

The following microoperations cant be executed during a single clock pulse in the system shown in Fig. 5-4. Specify the sequence of microoperations that will perform the operation. a. M[PC]

The following microoperations can't be executed during a single clock pulse in the system shown in Fig. 5-4. Specify the of microoperations that will perform the operation. a. M[PC]

Explain why each of the following microoperations cannot be executedduring a single clock pulse in the system shown in Fig. 5-4. Specify a sequence of microoperations that will perform the operation....
