Question: Express your answer in amperes. Calculate the three currents /1, 12, and 13 indicated in the circuit diagram AEd ? shown in (Figure 1). Submit

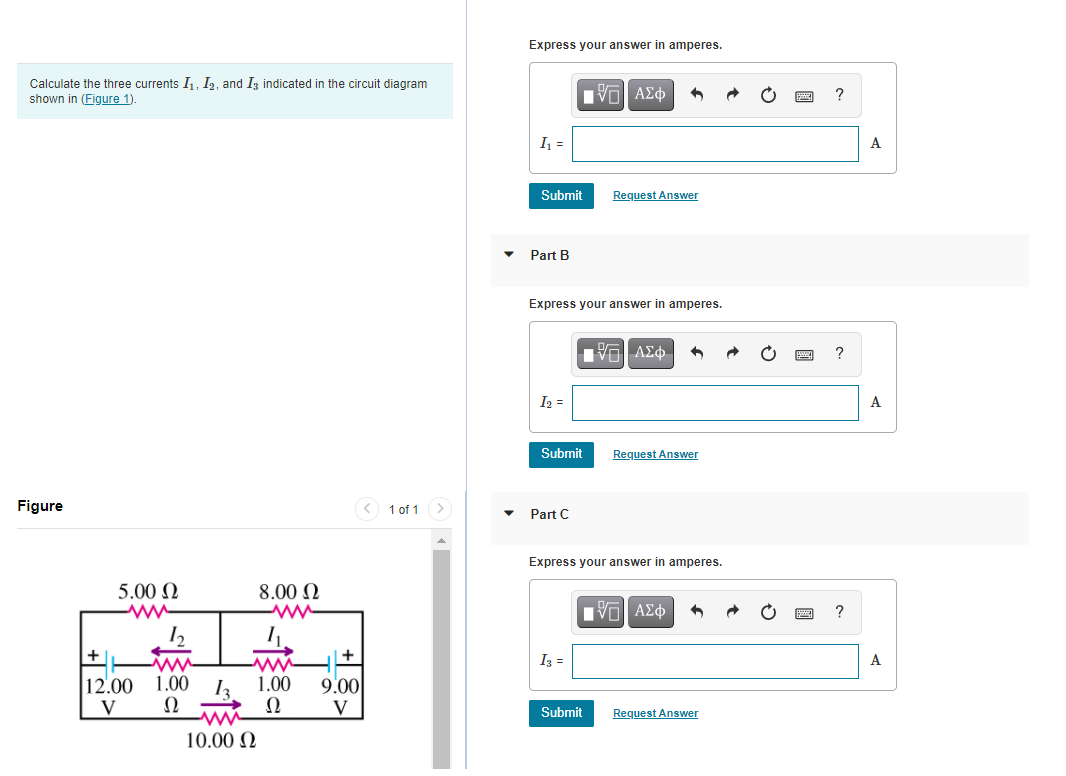

Express your answer in amperes. Calculate the three currents /1, 12, and 13 indicated in the circuit diagram AEd ? shown in (Figure 1). Submit Request Answer Part B Express your answer in amperes. IVO ? 12 : A Submit Request Answer Figure Part C Express your answer in amperes. 5.00 0 8.00 0 ? 12 WW A 12.00 1.00 13 1.00 9:00 V V Submit Request Answer 10.00 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
