Question: F 1 = 5 0 l b Calculated the forces in members DC , H C , and H I using method of sections and

F1=50lb

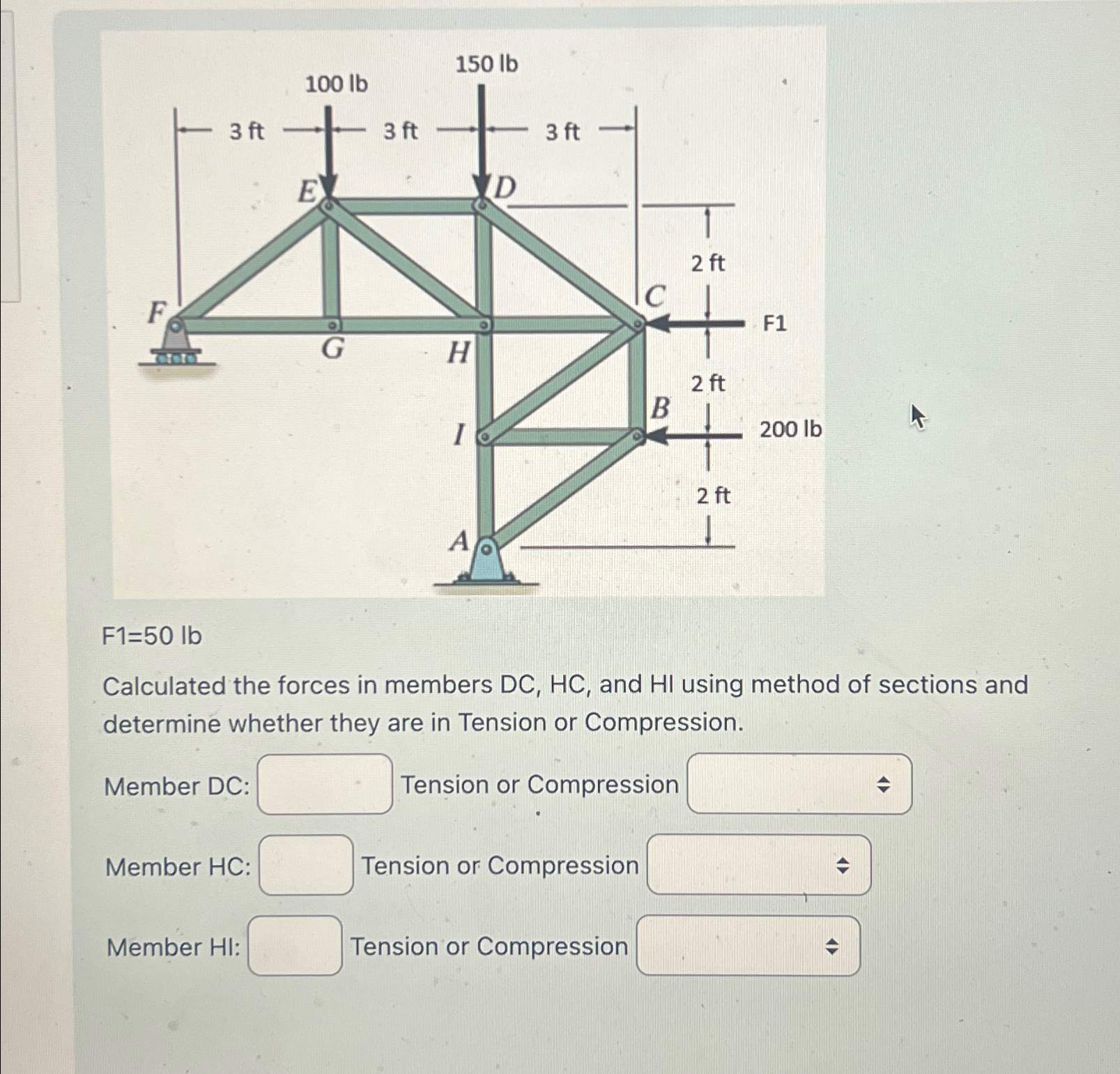

Calculated the forces in members DC,HC, and HI using method of sections and determine whether they are in Tension or Compression.
Member DC:
Tension or Compression
Member HC :
Tension or Compression
Member HI:
Tension or Compression
F 1 = 5 0 l b Calculated the forces in members DC

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
