Question: F: For the following transfer function s + 2 2 s 2 + 6 s + 5 0 and desired pole locations of s 1

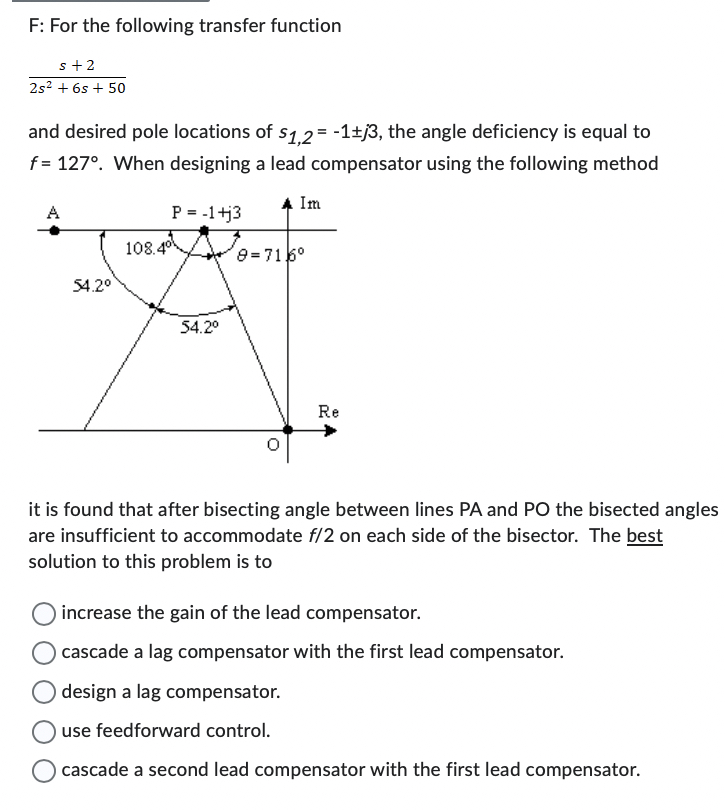

F: For the following transfer function
s+22s2+6s+50
and desired pole locations of s1,2=-1+-j3, the angle deficiency is equal to f=127. When designing a lead compensator using the following method
it is found that after bisecting angle between lines PA and PO the bisected angles are insufficient to accommodate f2 on each side of the bisector. The best solution to this problem is to
increase the gain of the lead compensator.
cascade a lag compensator with the first lead compensator.
design a lag compensator.
use feedforward control.
cascade a second lead compensator with the first lead compensator.
F: For the following transfer function s + 2 2 s
