Question: FBD Fig. 8 Rigid, mass - less bar AC supported by a pin connection and two linearly elastic cables, and FBD of bar AC ,

FBD

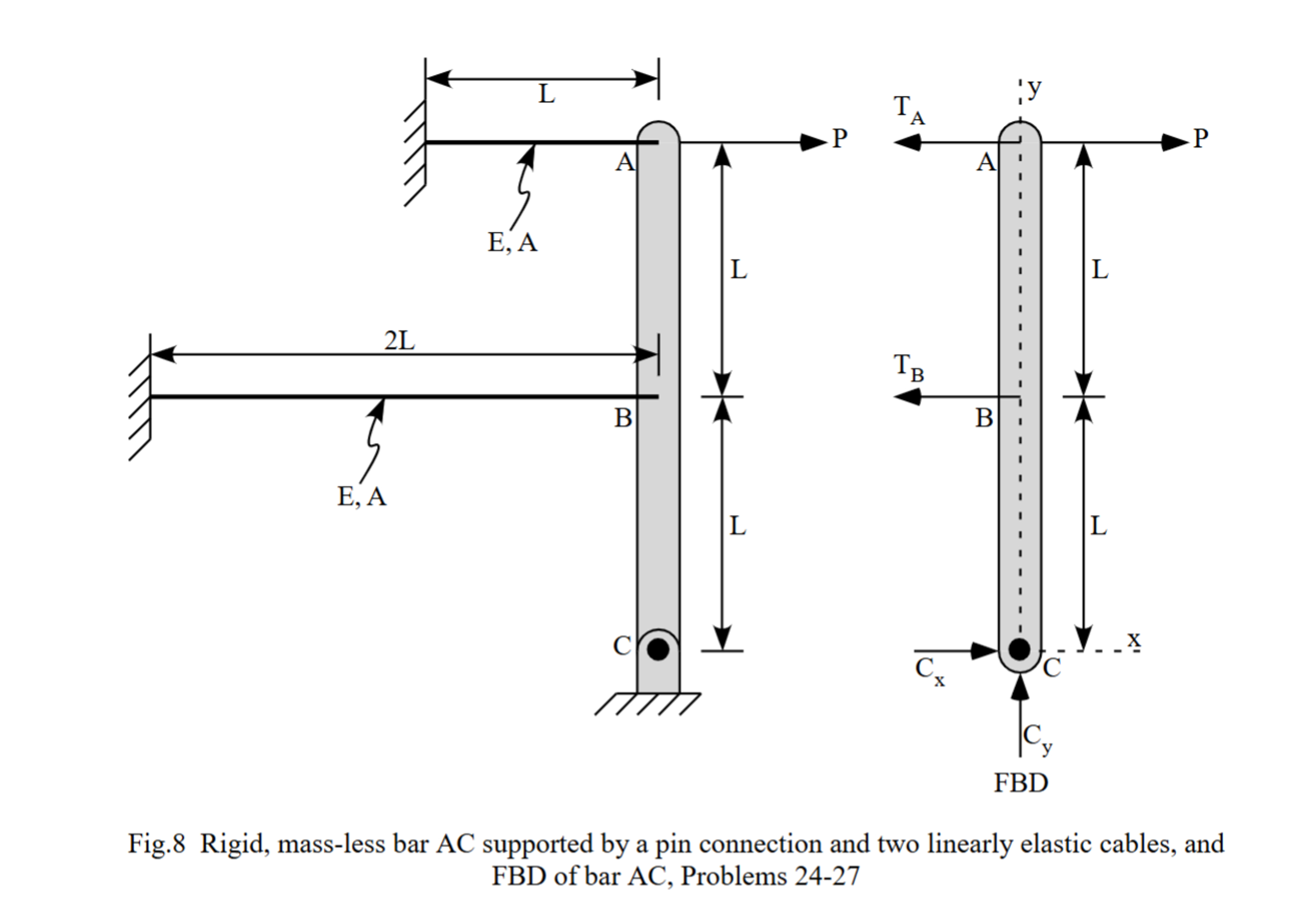

Fig. 8 Rigid, mass-less bar AC supported by a pin connection and two linearly elastic cables, and
FBD of bar AC, Problems 24-27
24) Find the equations of equilibrium
25) Find the Constititive equations for the structure shown above
26)Find the combatibility equations for the rigid bar shown above
27) What is the tension in Cable A, TA?
FBD Fig. 8 Rigid, mass - less bar AC supported by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
