Question: FIG. 1 1 . 9 2 Problem 3 0 . 3 4 . Find the waveform for the voltage induced across a 2 0 0

FIG. 11.92
Problem 30.

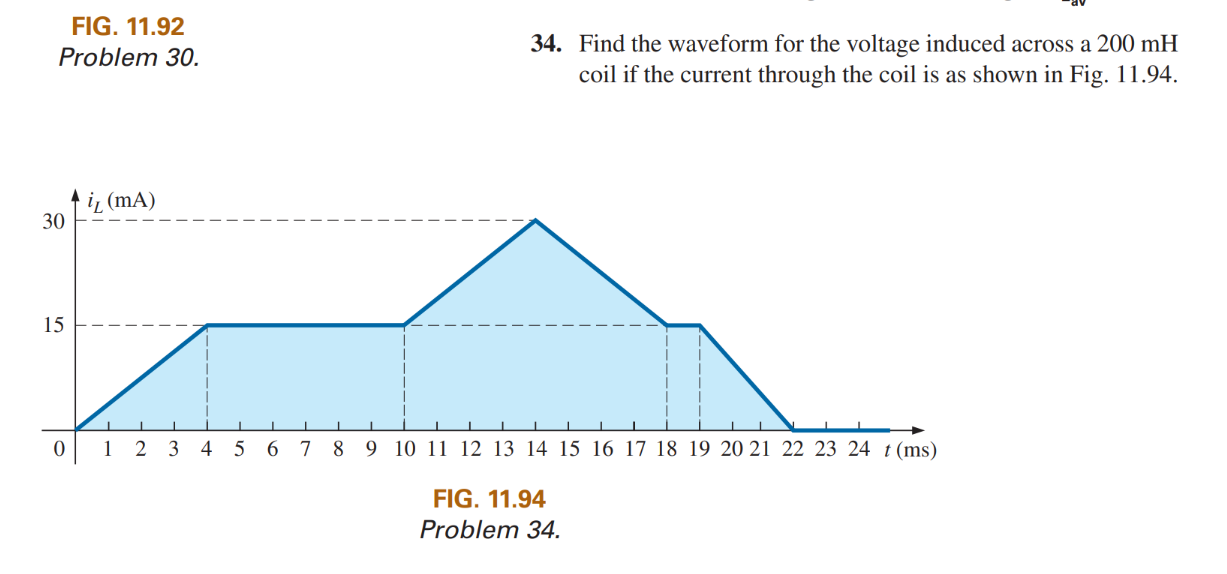

34. Find the waveform for the voltage induced across a 200 mH coil if the current through the coil is as shown in Fig. 11.94.
FIG. 11.94
Problem 34.
FIG. 1 1 . 9 2 Problem 3 0 . 3 4 . Find the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
