Question: Fig. 1 2 . Two coils, with terminals A B and C D respectively, are inductively coupled. The inductance measured between the terminals A B

Fig. 1

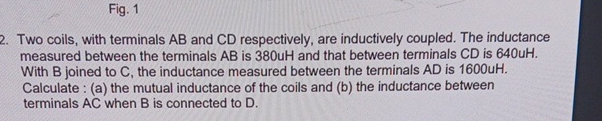

2. Two coils, with terminals AB and CD respectively, are inductively coupled. The inductance measured between the terminals AB is 380 uH and that between terminals CD is 640 uH . With B joined to C, the inductance measured between the terminals AD is 1600 uH . Calculate : (a) the mutual inductance of the coils and (b) the inductance between terminals AC when B is connected to D .
