Question: Fig. 6 shows a parallel - plate capacitor with a plate area A = 1 0 c m 2 and plate separation d = 5

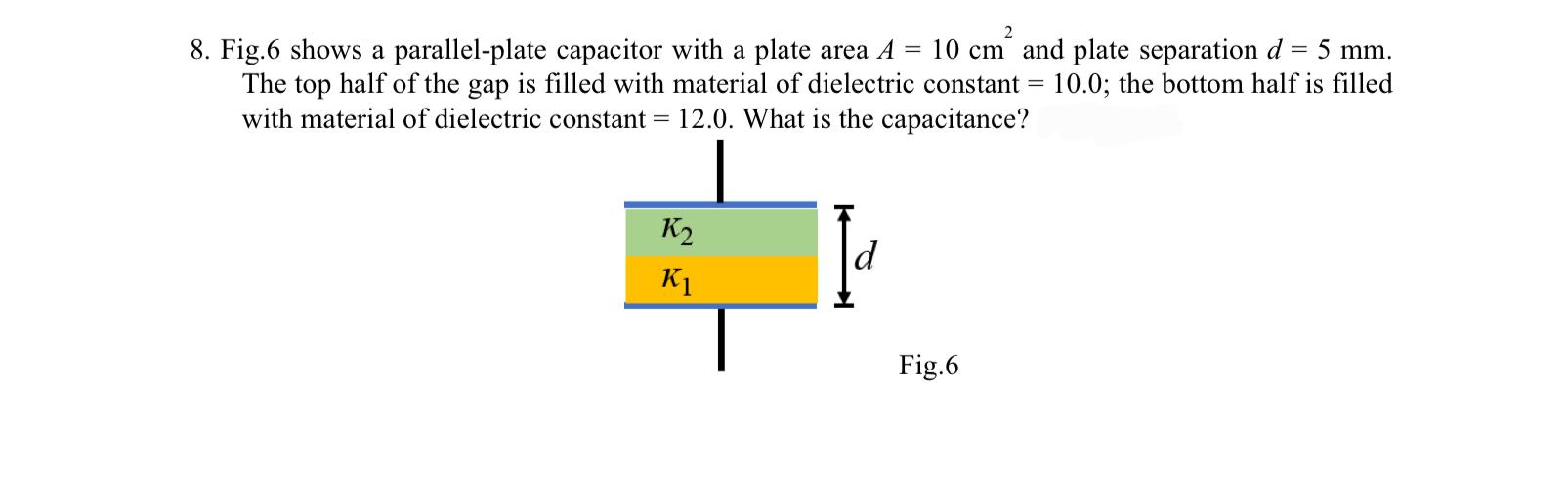

Fig. 6 shows a parallel-plate capacitor with a plate area A=10cm2 and plate separation d=5mm. The top half of the gap is filled with material of dielectric constant =10.0; the bottom half is filled with material of dielectric constant =12.0. What is the capacitance?
Fig. 6 shows a parallel-plate capacitor with a plate area A=10cm2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
