Question: Figure 1 0 ( 2 , 1 0 1 ) The closed layered box in Figure 1 1 has square horizontal cross sections everywhere. All

Figure 10

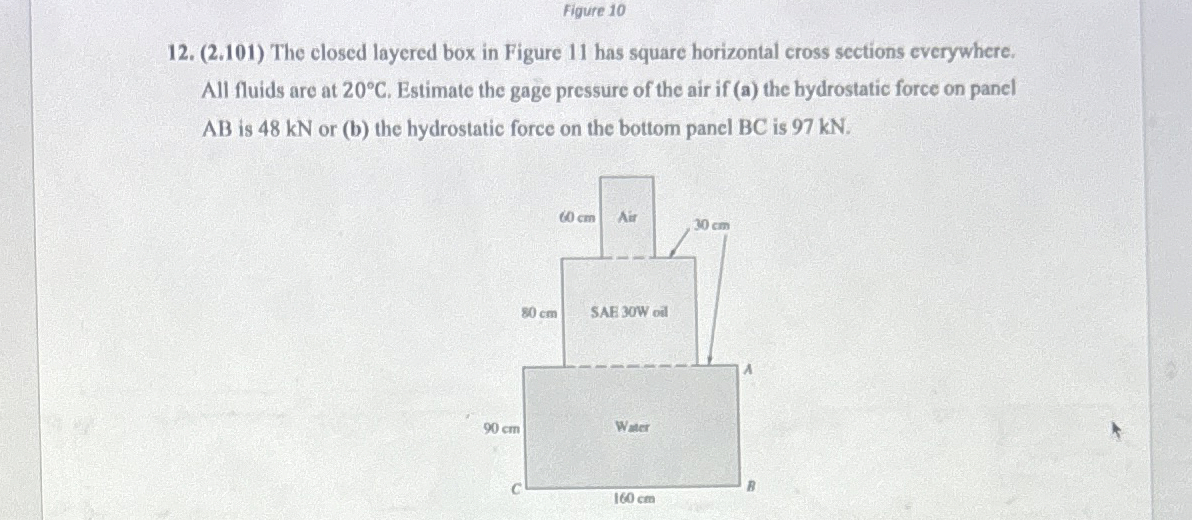

(2,101) The closed layered box in Figure 11 has square horizontal cross sections everywhere.
All fluids are at 20C. Estimate the gage pressure of the air if (a) the hydrostatic force on panel
AB is 48 kN or (b) the hydrostatic force on the bottom panel BC is 97 kN .
Figure 1 0 ( 2 , 1 0 1 ) The closed layered box

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
