Question: Figure 1 : Simple beam with side cantilever Consider both 8 and q 2 loading, separately and superposed 3 . Compute the support reaction for

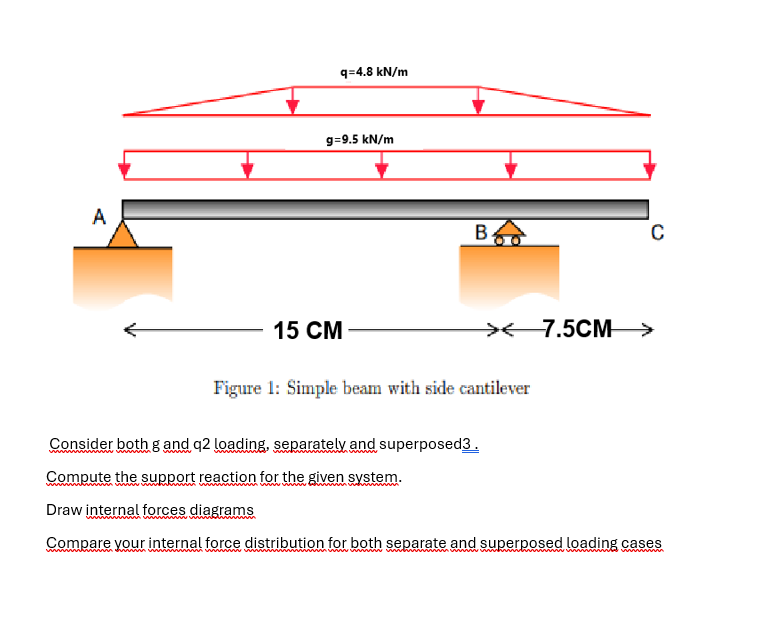

Figure 1: Simple beam with side cantilever
Consider both 8 and q2 loading, separately and superposed 3.
Compute the support reaction for the given system.
Draw internal forces diagrams
Compare your internal force distribution for both separate and superposed loading cases
Figure 1 : Simple beam with side cantilever

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
