Question: Figure 2 - 4 8 Full Alternative Text 2 - 4 9 . Determine the magnitude and coordinate direction angles of the resultant force, and

Figure 2-48 Full Alternative Text

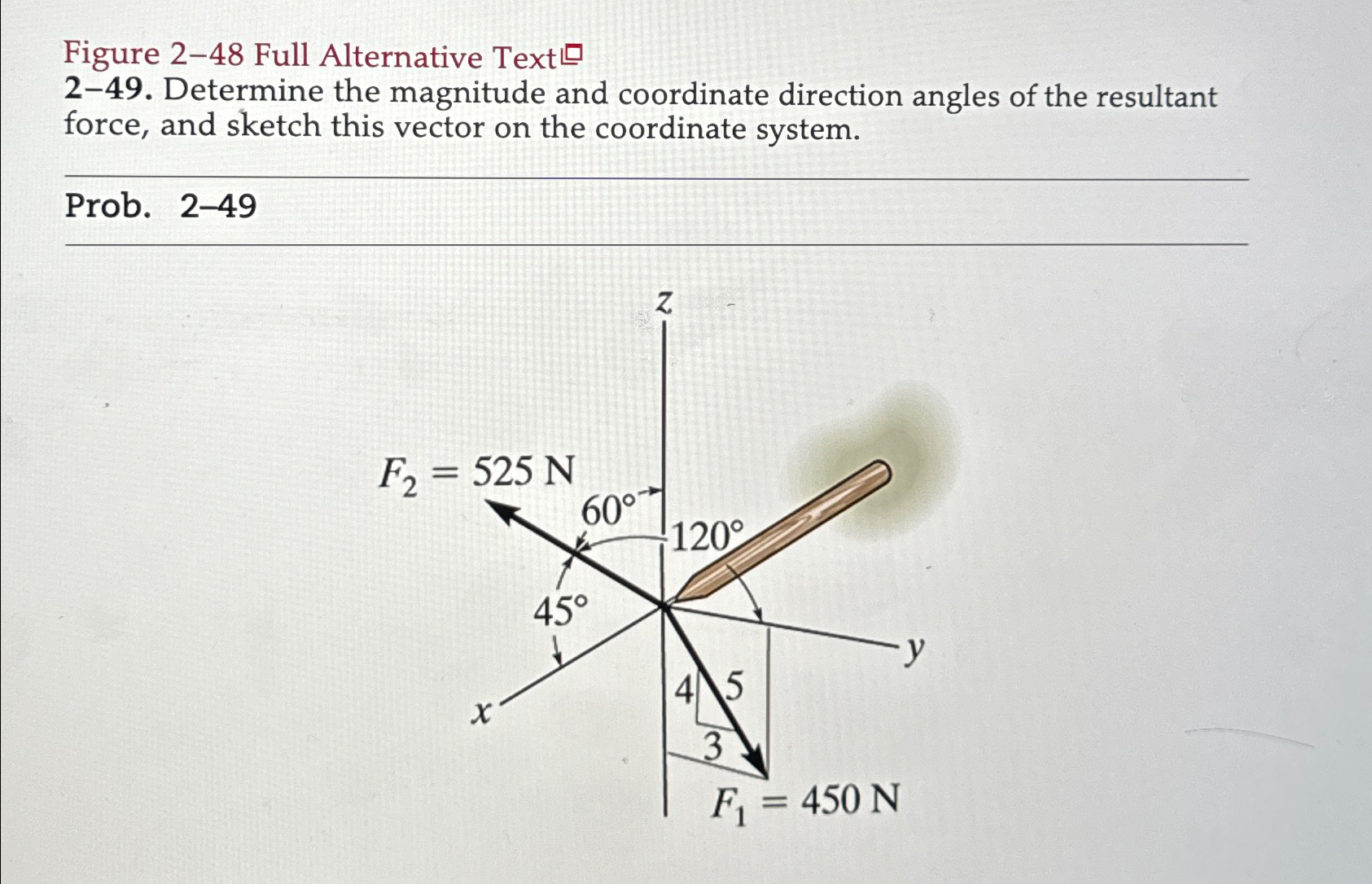

2-49. Determine the magnitude and coordinate direction angles of the resultant force, and sketch this vector on the coordinate system.
Prob. 2-49
Figure 2 - 4 8 Full Alternative Text 2 - 4 9 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
