Question: Figure 3 : Circuit for Problem 3 . Problem 3 : Application - 1 5 % Consider the ideal op - amp circuit shown in

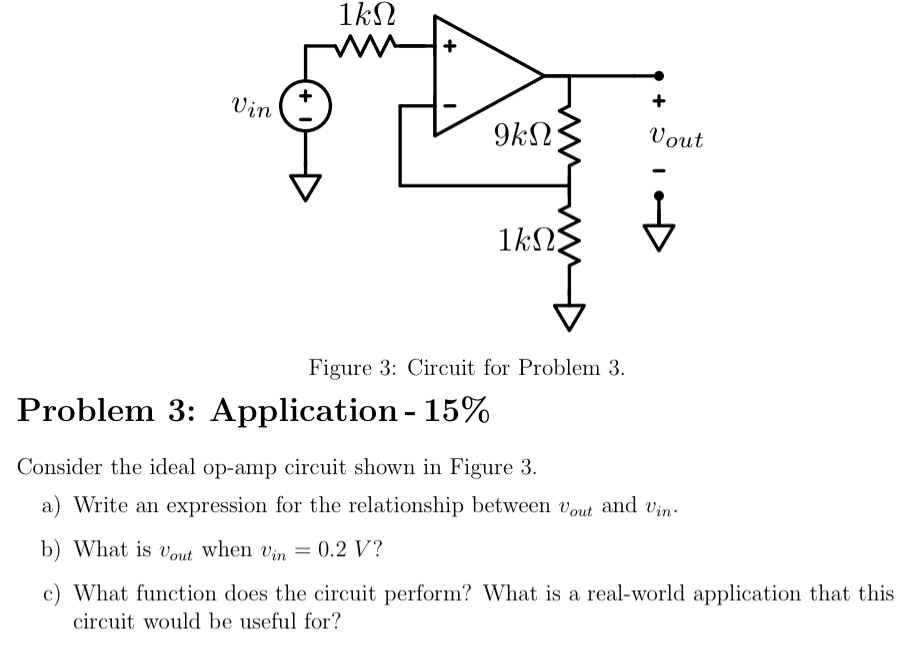

Figure 3: Circuit for Problem 3.
Problem 3: Application-15%
Consider the ideal op-amp circuit shown in Figure 3.
a) Write an expression for the relationship between vout and vin.
b) What is vout when vin=0.2V?
c) What function does the circuit perform? What is a real-world application that this circuit would be useful for?
Figure 3 : Circuit for Problem 3 . Problem 3 :
