Figure $4(b)$

Question $5$:

$($Value: $20$ marks$)$

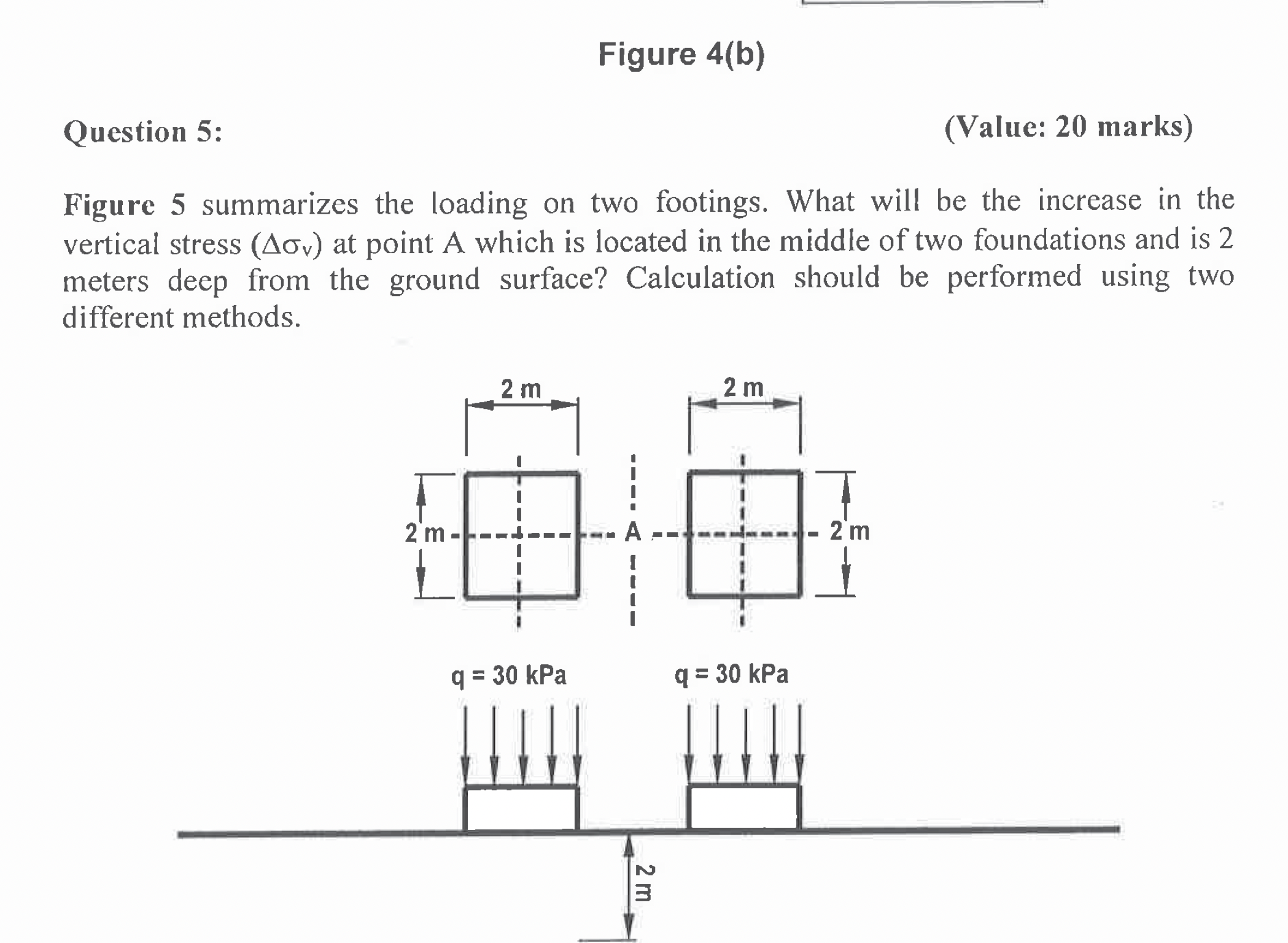

Figure $5$ summarizes the loading on two footings. What will be the increase in the

vertical stress $({}_v)$ at point A which is located in the middle of two foundations and is $2$

meters deep from the ground surface? Calculation should be performed using two

different methods.
