Question: Figure 6 3 4 . What Class amplifier is shown in Figure 6 ? 3 5 . The transistor in Figure 6 is biased how?

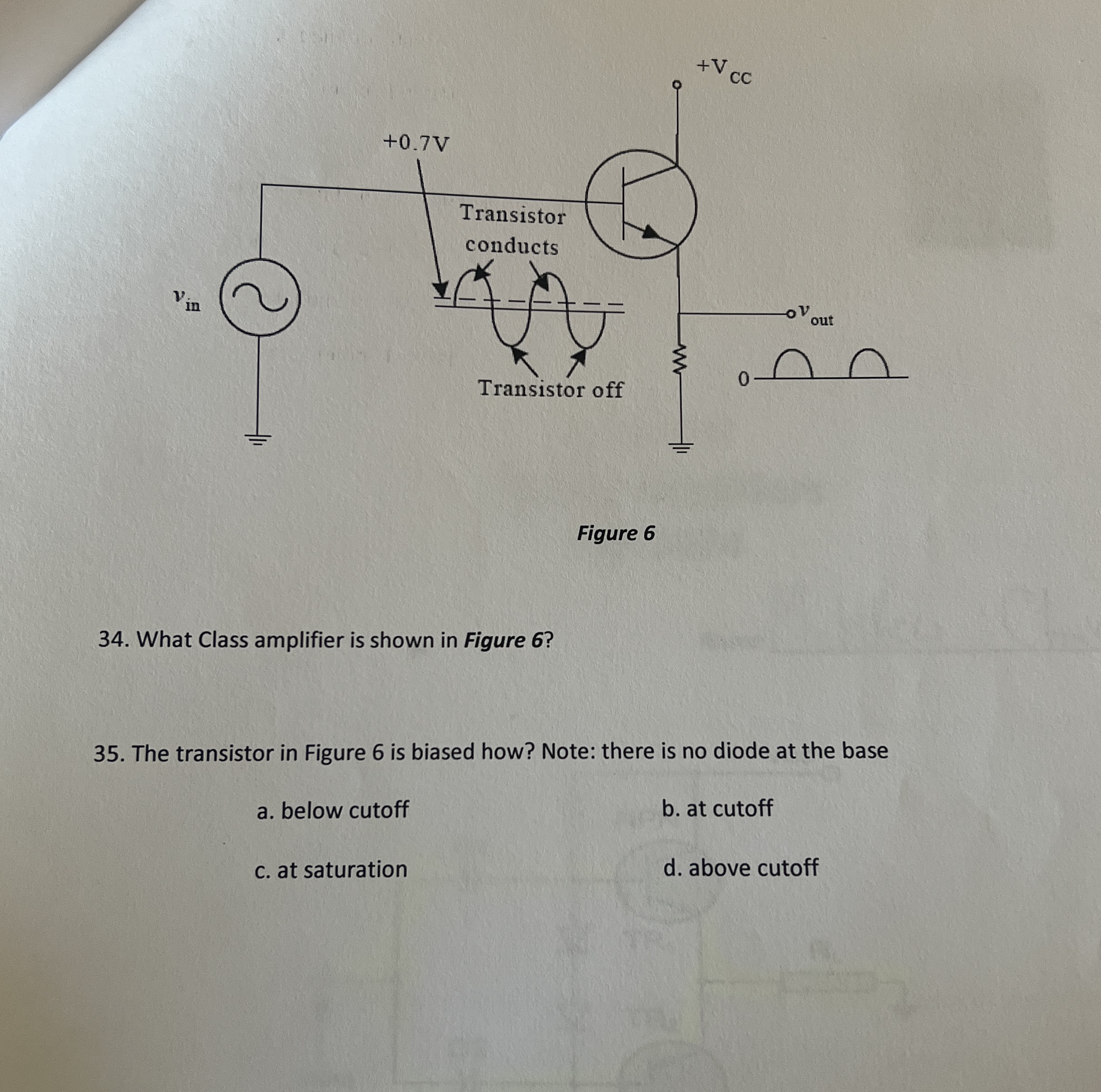

Figure 6
34. What Class amplifier is shown in Figure 6?
35. The transistor in Figure 6 is biased how? Note: there is no diode at the base
a. below cutoff
b. at cutoff
c. at saturation
d. above cutoff
Figure 6 3 4 . What Class amplifier is shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
