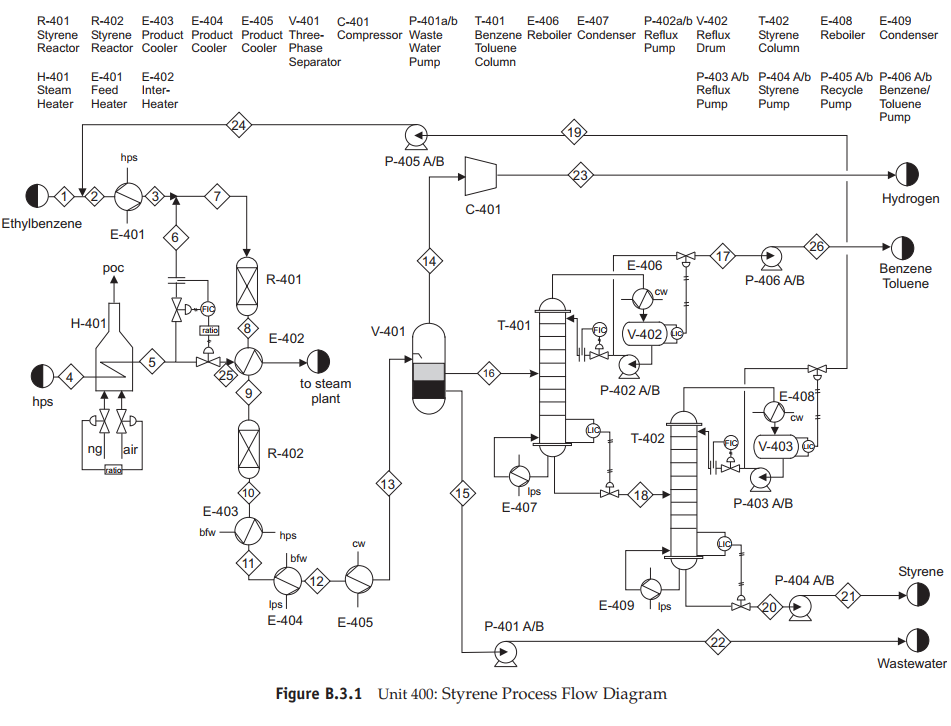

Question: Figure B . 3 . 1 Unit 4 0 0 : Styrene Process Flow Diagram For the styrene process shown in the figure draw the

Figure B.3.1 Unit 400: Styrene Process Flow Diagram For the styrene process shown in the figure draw the following a) Main flow paths of ethylbenzene, styrene and hydrogen b) Recycle paths
Figure B.3.1 Unit 400: Styrene Process Flow Diagram For the styrene

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Q:

Please help me answer parts d through i. thank you 3 4 4 3.5 5 6 4.5 4 O U 0 4 6 6 5 4 O O 00 9 270 210 180 1440 240 1920 360 2880 2160 1680 0 150 O 150 0 150 90 90 90 90 120 120 0 120 120 Resource &...

Q:

Please answer parts (a)-(i) (on the 2nd page) ONLY I don't need help with filling out the chart. Will not give a thumbs up for filling out the chart. Thank you in advanced. 4 6 6 0 4 QUESTION 24 (10...

Q:

Question 1 Your group is tasked with performing both an order of magnitude (Class 5) and study estimate (Class 4) for the capital cost of a styrene production plant. A process flow diagram (PFD) and...

Q:

*must use CAPCOST* 28. Cost of manufacturing (14 points) Chapter 7, problem 22 and Chapter 8, problem 14 in Turton book (see Appendix B). It is recommended that the following problems be solved using...

Q:

2 C6H5C2H5 = C6H5C2H3 + H2 ethylbenzene styrene hydrogen (B.3.1) 3 C6H5C2H5 + C6H6 + C2H4 ethylbenzene benzene ethylene (B.3.2) 4 C6H5C2H5+H2 +C6H3CH3 + CH4 ethylbenzene hydrogen toluene methane...
