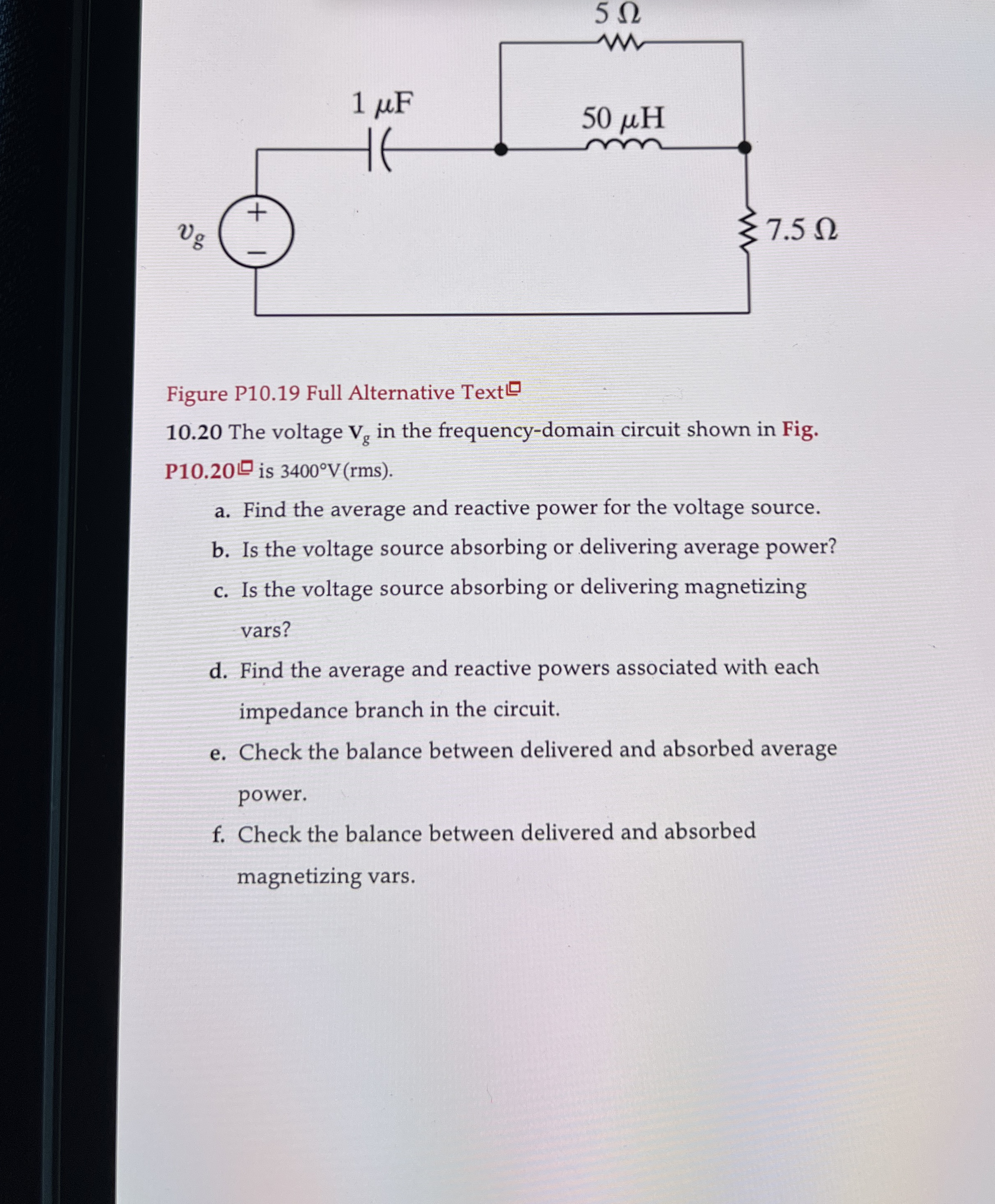

Figure P$10\mathrm{.}19$ Full Alternative Text

$10\mathrm{.}20$ The voltage $V_g$ in the frequency$-$domain circuit shown in Fig. $P{10\mathrm{.}20}^{-15}3400V($rms$).$

a$.$ Find the average and reactive power for the voltage source.

b$.$ Is the voltage source absorbing or delivering average power?

c$.$ Is the voltage source absorbing or delivering magnetizing vars?

d$.$ Find the average and reactive powers associated with each impedance branch in the circuit.

e$.$ Check the balance between delivered and absorbed average power.

f$.$ Check the balance between delivered and absorbed magnetizing vars.
