Figure P$\mathrm{.}13\mathrm{.}5$

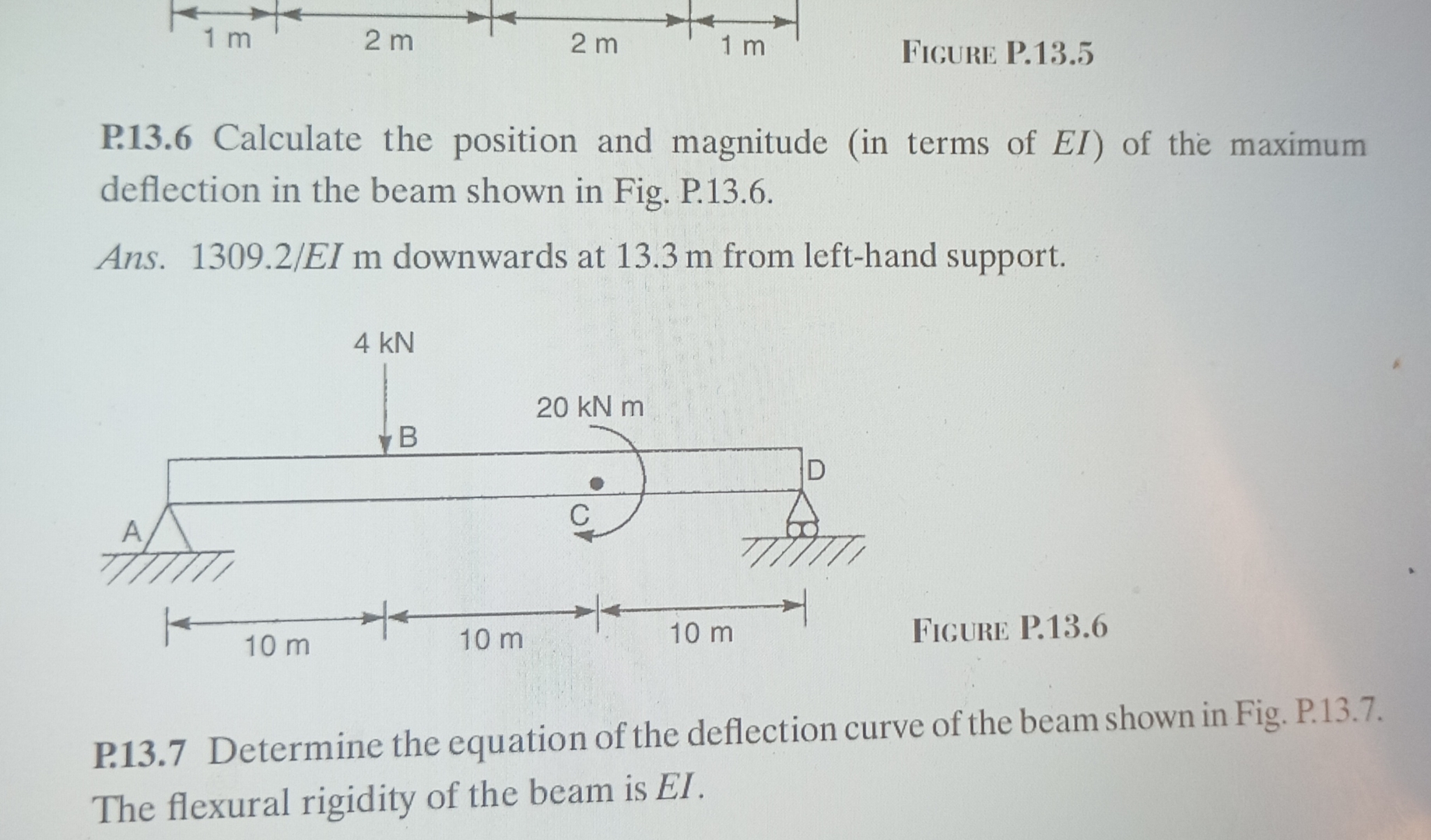

P$13\mathrm{.}6$ Calculate the position and magnitude $($in terms of $EI)$ of the maximum deflection in the beam shown in Fig. P$\mathrm{.}13\mathrm{.}6.$

Ans. $\frac{1309\mathrm{.}2}{E}Im$ downwards at $13\mathrm{.}3$ m from left$-$hand support.

Figure P$\mathrm{.}13\mathrm{.}6$

P$13\mathrm{.}7$ Determine the equation of the deflection curve of the beam shown in Fig. P$\mathrm{.}13\mathrm{.}7.$ The flexural rigidity of the beam is $EI.$
